RAM® Tele-Pole™ with 12" & 18" Poles and 75mm VESA Mount
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.
Features
- Pair this RAM® Tele-Pole™ with a RAM® vehicle base that does not contain a welded female Tele-Pole™
- Easily adjust the height of the Tele-Poles™ with the turn of a knob, allowing you to twist and tilt the viewing and operating angle of your connected device
- Consists of D size mounting components, including a 75x75mm VESA Mount for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a lifetime warranty

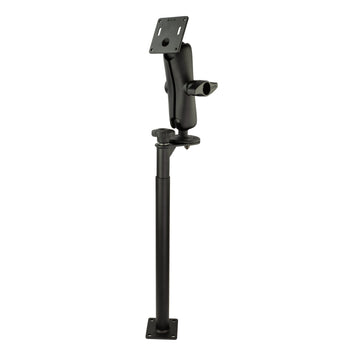

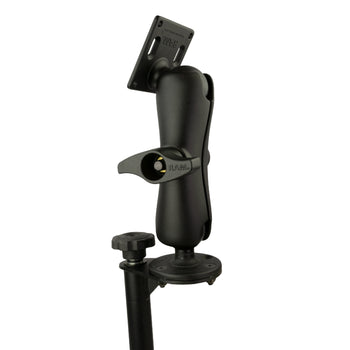

This RAM® Tele-Pole™ consists of an 18" lower pole, a 12" upper pole, double swing arm, and 75x75mm VESA Plate. The lower Tele-Pole™ will attach to all RAM® vehicle bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices, allowing you to twist and tilt the viewing and operating angle of your connected device.
Components
hardware included
Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps
socket to socket length
6.88"
hole pattern
Tele-Pole: 2.625" x 2.625"
VESA Plate: 75 x 75mm VESA
ball size
D Size (2.25")
weight capacity
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
materials
Powder coated steel
Marine-grade aluminium
packaging type
Poly Bag
Weight
4.423 kg
