RAM® iPad 1-4 Locking Mount for '99-16 Ford F-250 - F750 + More
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team , alternatively order the individual component parts below.
Swipe to see more images.

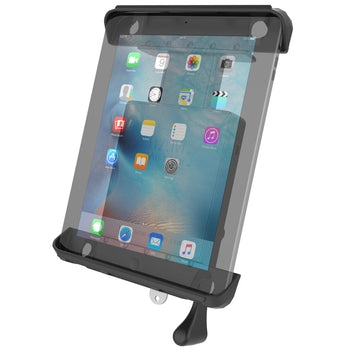

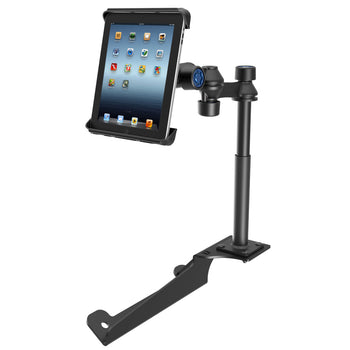

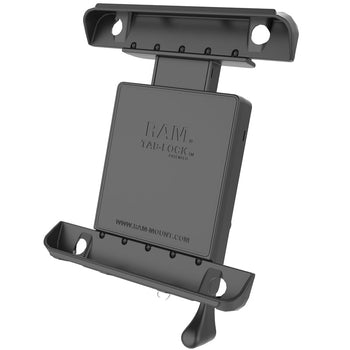

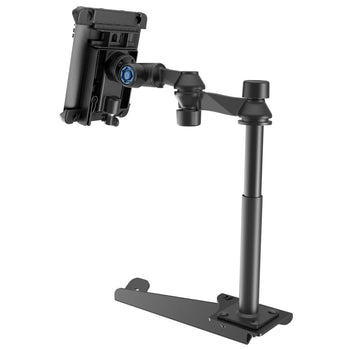

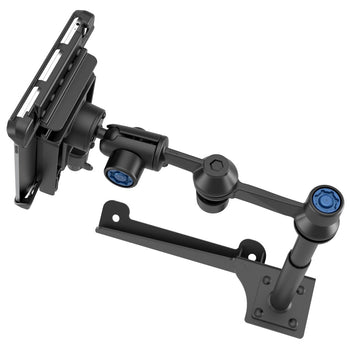

RAM-VB-185-TABL3-SK is a No-Drill™ vehicle mount with Tab-Lock™ cradle and locking security knobs. The No-Drill™ base installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The Tab-Lock™ cradle includes a spring loaded design makes it easy to load and unload your iPad, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your iPad, allowing access to audio jacks, usb, power, and other ports, your iPad can be used just as it was intended. Quickly lock the cradle, keeping your iPad secure and safe from theft. With an emphasis on aesthetics and function, the security knobs are low in profile and only adds a small amount of additional bulk to your system when compared to the standard knob included. The knobs are the perfect accessory for keeping your mounted electronic device safe from theft and tampering.
Components
hardware included
Assembly Hardware
(2) Keys
(2) M12-1.75 x 100mm Hex Bolts
(2) M12-1.75 x 60mm Hex Bolts
(2) M12 Lock Washers
(2) 3/8" Stand-Offs
(2) 1" Stand-Offs
holder dimensions
Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"
hole pattern
Seat Bolt Distance: 11.5" centre to centre
ball size
C Size (1.5")
materials
Powder coated steel
Marine grade-aluminium
High strength composite
packaging type
Box
Weight
6.86 kg
