RAM® Finger-Grip™ Holder with Track Ball™ Base - Long
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.
Features
- 1" B-size RAM® ball with adjustable T-bolt designed for track mounting systems including the RAM® Tough-Track™ and other third-party track systems
- Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
- Includes a B-size long length socket arm and RAM® Finger-Grip™ handheld radio holder with adjustable side arms for a variety of different radios

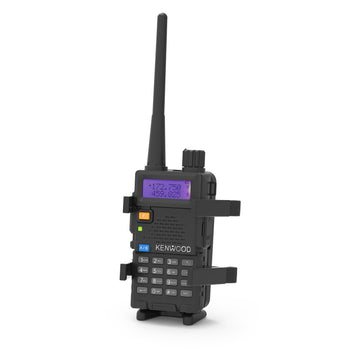

- RAM® Finger-Grip™ holds a variety of different 2-way radios and includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
- Backed by a lifetime warranty

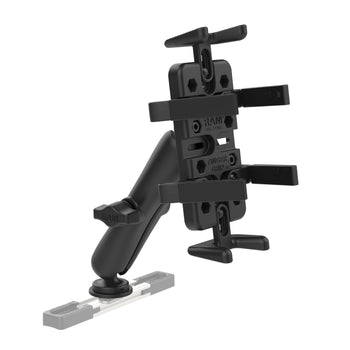

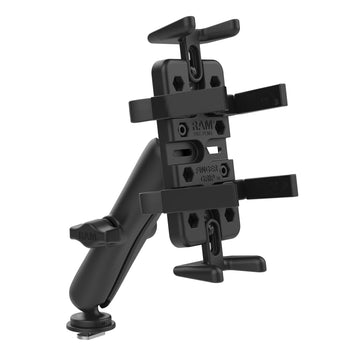

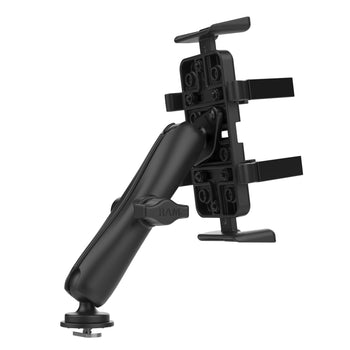

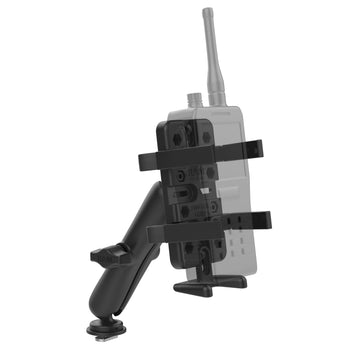

This RAM® Track Mount for handheld radios (RAM-HOL-UN4-C-354-TRA1U) is made up of a B size 1" ball molded to a high-strength composite base, a rubber friction washer and a stainless steel T-bolt for sliding into any third-party track system, or the RAM® Tough-Track™ line of tracks. Simply insert or slide the Track Ball™ into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball. Included in this kit is a B size long length socket arm and a RAM® Finger-Grip™ for handheld radios featuring adjustable side arms for a form-fit depending on your specific radio. This track mount is ideal for mounting 2-way radios to the Jeep JL and Gladiator dashboard track mount (RAM-DT-204-TRACK-A12U) and the new Ford Bronco dashboard track mount (RAM-DT-207-TRACK-EXA-29BU).

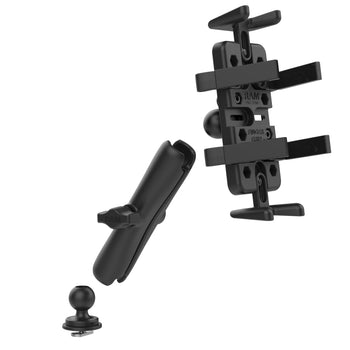

Components
hardware included
Assembly Hardware
holder dimensions
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
t bolt dimensions
.48" x .95"
socket to socket length
5.31"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.53 kg
