RAM® Finger-Grip™ Universal GPS and Radio Holder

Part#: RAM-HOL-UN4U
UPC:793442905575Patented

£30.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Swipe to see more images.

Features

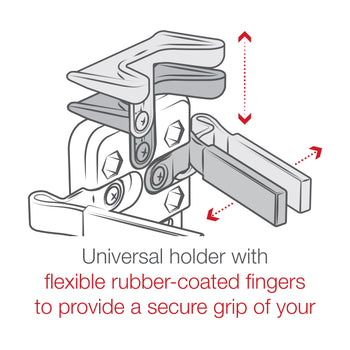

  • Universal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends

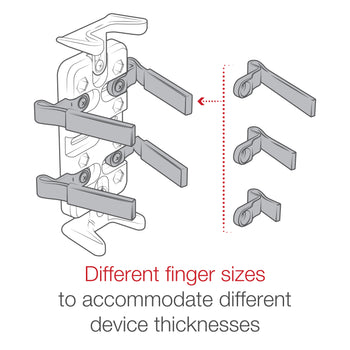

  • Includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
  • Compatible with RAM® Mounts B and C size diamond ball bases for attaching to double socket arms and mounting bases
  • Backed by a lifetime warranty

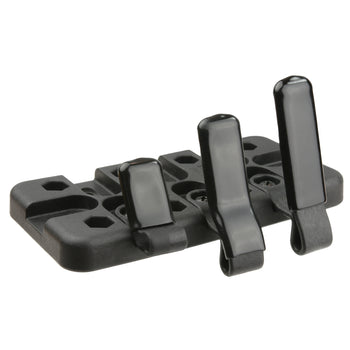

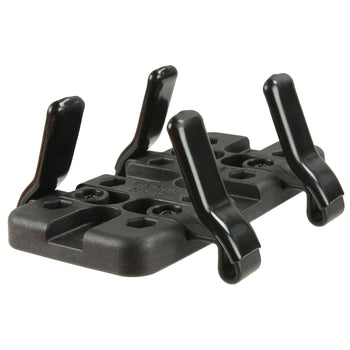

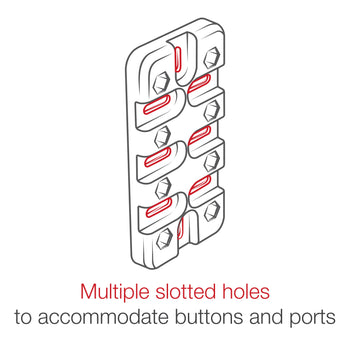

The RAM® Finger-Grip™ is a universal holder that can accommodate a wide range of devices including GPS, handheld radios, phones, bluetooth speakers, and much more. Included with the holder are three sets of four flexible rubber-coated fingers to grip your device. The main backing plate consists of multiple slotted holes where any set of finger grips can be positioned to hold your device firmly. When positioned correctly, your device can easily wedge in and out of the holder; suited for any rough environment. Also included are two sets of optional top and bottom supports to add even more stability to your device if needed. The back of the RAM® Finger-Grip™ contains multiple 4-hole AMPS hole patterns for connecting to any RAM® components using the included set of nuts and bolts. Mount your handheld device virtually anywhere with the RAM® Finger-Grip™. See compatible device dimension ranges below.

hardware included

Assembly Hardware
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts

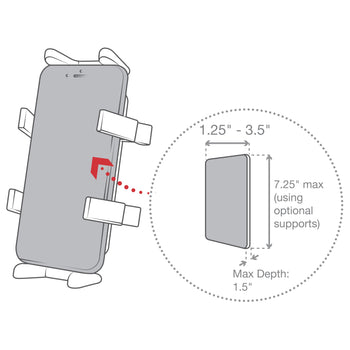

holder dimensions

Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"

hole pattern

(3) 4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

Weight

0.22 kg
