RAM® Power + Data Dock for Getac ZX10
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Form-fit power + data sync dock designed specifically for Getac ZX10 rugged tablet

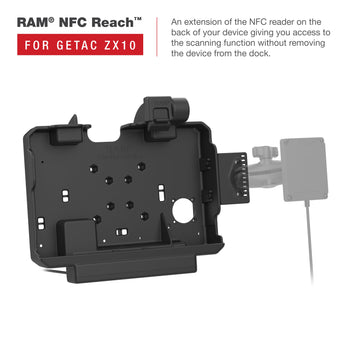

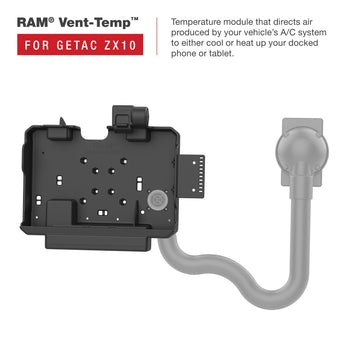

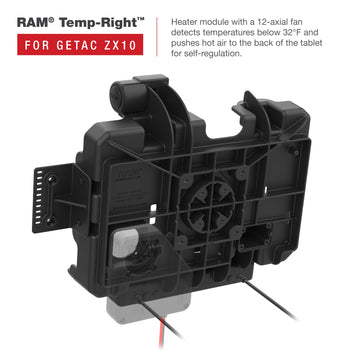

- Dock features compatibility with RAM® Vent-Temp™, Temp-Right™, RAM® NFC Extender, and D size RAM® VESA pattern base
- Provides charging connectivity through integrated pogo pin technology and 5.5mm DC connector; provides single peripheral support via USB Type-A cable
- Includes 2-hole side bracket for mounting additional devices such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty

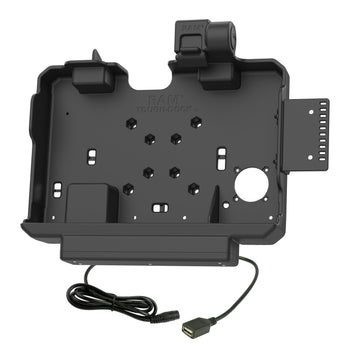

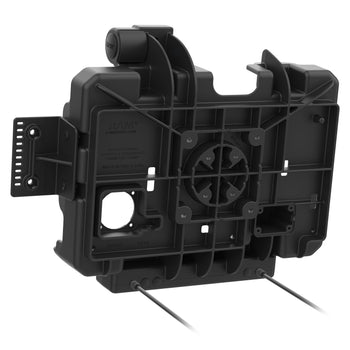

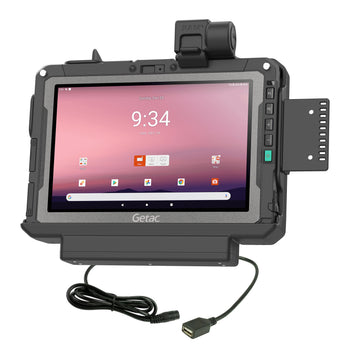

The RAM® Power + Data Dock for Getac ZX10 (RAM-HOL-GE4PDU) allows you to secure the device and keep it charged through the pogo pin contacts while docked—power is provided by connecting to the dock's 5.5mm DC power jack. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. Upgrade with any combination of compatible accessories including the RAM® Temp-Right™, Vent-Temp™, RAM® NFC Extender, and D size VESA base. Additional compatibility for Getac accessories include the Standard & High capacity batteries as well as the Hard Carry Handle. Take the solution a step further by taking advantage of the included 2-hole side bracket, compatible with RAM® 2-hole diamond bases for additional device mounting such as a phone or other handheld device.
hardware included
(1) Side bracket for accessory mounting and strain relief
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-32 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
()1 Cable Clamp
(2) Large Cable Ties
(8) Small Cable Ties
hole pattern
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
19VDC
input connector
5.5mm DC Connector
input cable length
1 Meter
output connector
(1) USB 2.0 Type A
output cable length
240mm
certifications
FCC, IC, CE, UKCA, WEEE, RoHS
Weight
0.98 kg
