RAM® Vent-Temp™ with Back Dock Connection for Rectangular Vents
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Temperature regulating accessory designed to install directly into the fan housing located on the back of compatible RAM® and GDS® docks
- Directs cold or hot air from the vehicle's A/C system towards the back of the docked tablet using a 50"-long flexible hose attachment; hose can be cut for desired length
- Magnetic hose adapter allows for quick-disconnect from the vent adapter
- Includes rectangular vent adapter covering a surface area of 2.72" x 4.77"
- Backed by a lifetime warranty

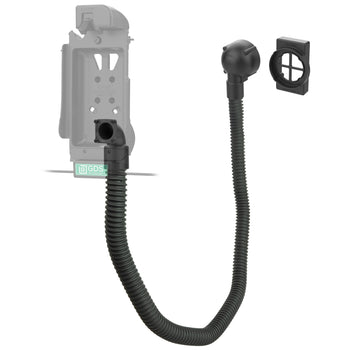

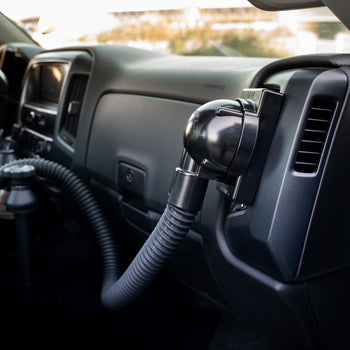

This RAM® Vent-Temp™ temperature module accessory (RAM-VENT1-RCT-50U) installs to the back of compatible RAM® and GDS® docks and attaches to rectangular A/C vents using included zip ties. This version of the RAM® Vent-Temp™ directs air produced by your vehicle's A/C system to either cool, or heat up the docked tablet from the back. This is ideal for environments where the tablet needs to be cooled off or heated up to maintain operating temperatures during critical work functions. When installed correctly and vent cover is attached to a rectangular air vent, the hose adapter features integrated magnets for easy break-away when the RAM® Vent-Temp™ is not needed, or gets caught on something that could tug on the hose. The 50" included flexible hose can be cut to the desired length of reach from vent to tablet dock.

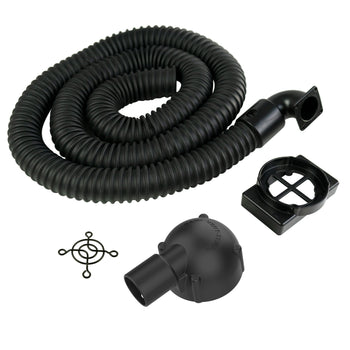

Components
hardware included
(3) Zip Ties
(4) #4-40 x 3/8" Machine Screws
(4) #4-40 Nylock Nuts
hole pattern
Dock Connection: 1.25" x 1.25"
plate size
Vent Connector: 2.72" x 4.77"
materials
High strength composite
packaging type
Poly Bag
Weight
0.42 kg
