GDS® Uni-Conn™ Locking Spring Loaded Power + Single USB-C Dock

£189.99 (Incl. VAT)

Currently out of stock, maximum wait time will be 6 weeks.

Features

  • Spring-loaded, locking dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral
  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • USB Type-C Female connector provides high-speed charging and USB Type-C connects one peripheral device
  • RAM® Mounts Compatible™
  • Backed by a 3-year warranty
GDS® Uni-Conn™ Locking Spring Loaded Power + Single USB-C Dock
Part#:RAM-GDS-DOCKL-V12-U1CP-CU UPC:793442020360 Patented

Overview

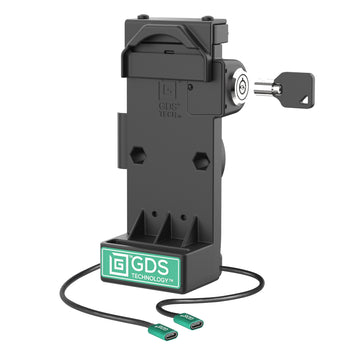

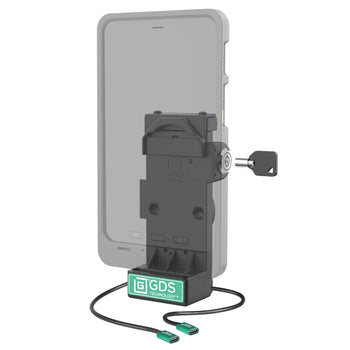

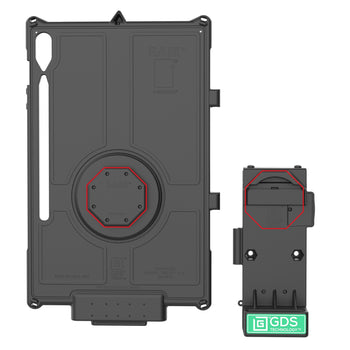

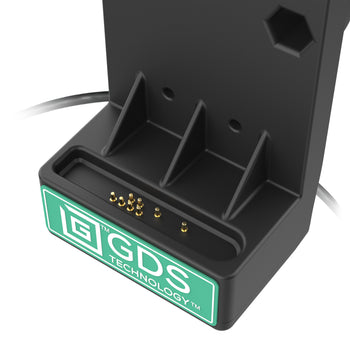

The GDS® Uni-Conn™ Locking Spring Loaded Power + Single USB-C Dock (RAM-GDS-DOCKL-V12-U1CP-CU) is a revolutionary universal docking platform. This sliding dock solution securely holds your device in place and features a key lock for additional theft deterrence. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. It has an easy docking and undocking process, simply place the GDS® Uni-Conn™ adapter on the back of your device into the octagon-shaped connection point on the top cup, pushing the the device upwards until you can place the bottom of the device on the D-shaped bottom cup connection point. Integrate up to one peripheral device into your solution with the USB-C female connector. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.

hardware included

(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

hole pattern

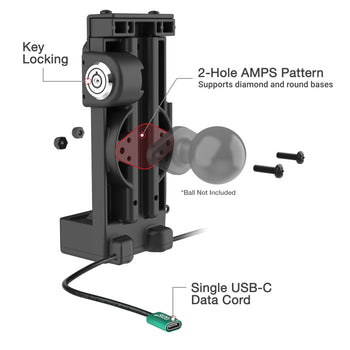

2-Hole AMPS: 1.912"

materials

High strength composite

packaging type

Poly Bag

input connector

USB Type-C
USB Type-C for 1 Peripheral

input cable length

1 Meter

peripheral output

500mAh

Warranty

3 year warranty

Weight

0.0 kg

Additional Information

GDS® Uni-Conn™ docks are not recommended for high vibration applications such as forklifts.
