RAM® Double Ball Mount for Sonim XP5s with Speaker & Hardwire Bundle
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.
Features
- Bundle for Sonim XP5s includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication

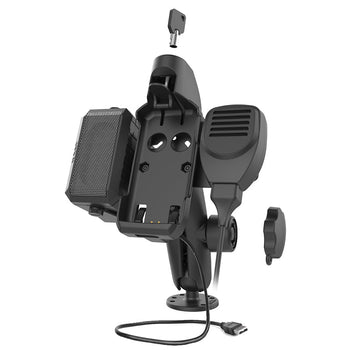

- Spring-loaded, powered RAM® EZ-Roll'r™ style form-fit cradle provides a perfect fit for your device without a case while keeping the device charged
- Key lock and RAM® Pin-Lock™ for theft deterrence
- RAM® Components backed by lifetime warranty; cradle backed by a 3-year warranty

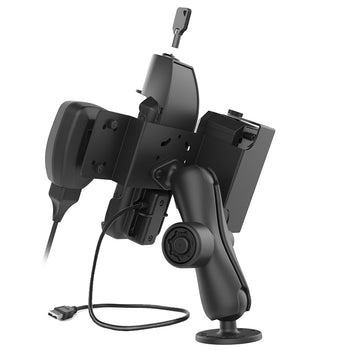

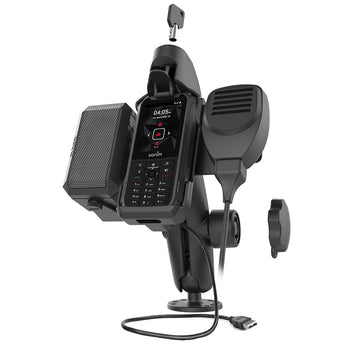

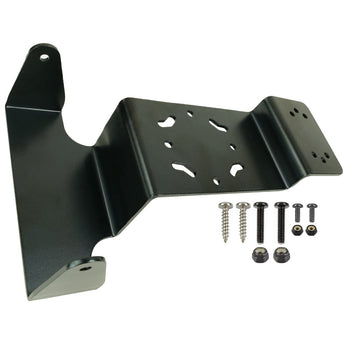

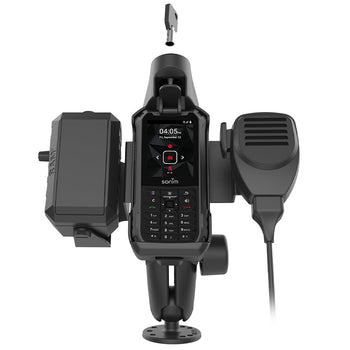

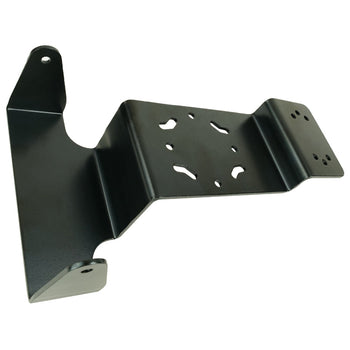

This Sonim XP5s bundle includes the RAM® EZ-Roll'r™ Powered Key Locking Cradle for Sonim XP5s, double ball mount with RAM® Pin-Lock™ Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP5s and keeps your peripherals together and connected as one unit. The powered cradle features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector, and includes key lock for extra security and peace of mind. The provided speaker connects to the Sonim usit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger.
Components
hardware included
Assembly Hardware
(2) Keys for Holder
(1) Key for Locking Knob
(1) 10-pin to 3.5 Audio Adapter Cable
(1) Modular Hardwire Charger
speaker specifications
Independently adjustable volume knob
Max volume level: 100dB
8Ω / 10W rated speaker
socket to socket length
4.66"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size
2.5" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
High strength composite
Powder-Coated Steel
packaging type
Poly Bag
input voltage
10-30VDC
output voltage
5-9VDC*
output current
2.5A max
input connector
Charger: Female USB Type A
input cable length
1.2 Meters including 2 Pole Flat Marine Connector
output cable length
.2 Meters
operating temperature
-10°C to +70°C
storage temperature
-40°C to +70°C
regulatory
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications
E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty
3 year warranty
Weight
1.923 kg
