RAM® Trolling Motor Stabilizer - Tough-Claw™ .625" - 1.14" Medium Arm

Part#: RAP-400-202U
UPC:793442946882Patent Pending

£73.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.

You can order the individual component parts below or we'll try to offer a suitable alternative.

Swipe to see more images.

Features

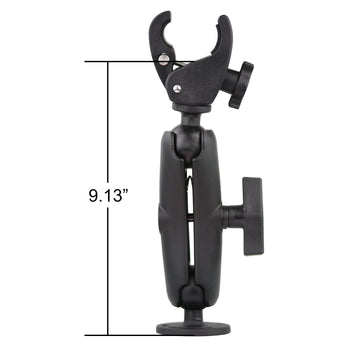

  • Includes small version of the RAM® Tough-Claw™, medium length C size RAM® double socket arm, and 2.5" round plate with C size 1.5" RAM® rubber ball

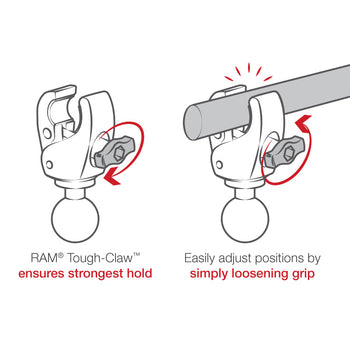

  • Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

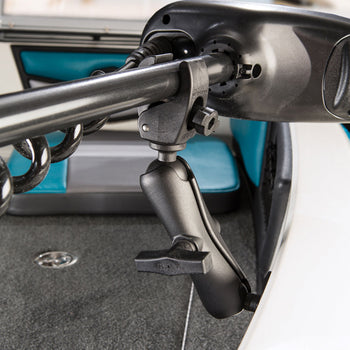

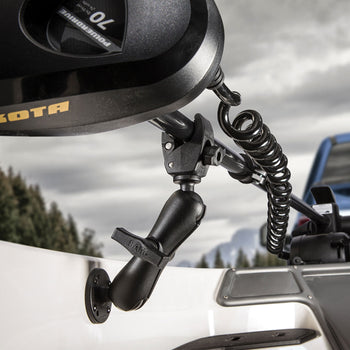

Ideal for stabilizing trolling motors, the RAP-400-202U consists of the small RAM® Tough-Claw™ base, C size medium length double socket arm, and round base adapter. The RAM® Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails, and bars. The RAM® Tough-Claw™ can be clamped on rails from 0.625" - 1.14" outer diameter. The round base adapter contains the industry standard universal AMPS hole pattern. This mount is designed with RAM® C size 1.5" diameter patented ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

clamp range

.625" - 1.14" diameter

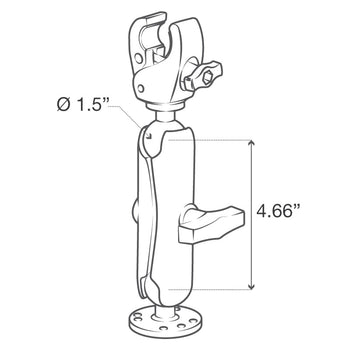

socket to socket length

4.66"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size

2.5" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.6 kg
