RAM® Tough-Ball™ with M6-1 x 6mm Threaded Stud - C Size
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.

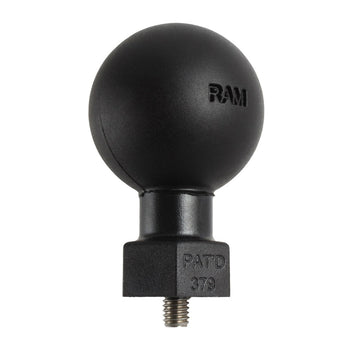

Introducing the new RAM Tough-Ball™. Why call it tough? Because this latest addition to the RAM product line has steel inside and out. The seamless transition between RAM versatility and steel durability allows for a multitude of real world, and out of this world, applications. With so many of the things we use incorporating threads and fasteners, there really is no limit to the number of uses you'll find for the RAM Tough-Ball™. The RAP-379U-M616 consists of a 1.5" diameter rubber ball, connected to a M6-1 X 6MM male threaded post.
thread pitch
M6-1 x 6mm
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
High strength composite
Stainless steel threads
packaging type
Poly Bag
Weight
0.07 kg
