RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 1 to 7 week timeframe. Please contact our sales team for more accurate delivery information.
You can also order the individual component parts below.
Swipe to see more images.
Features

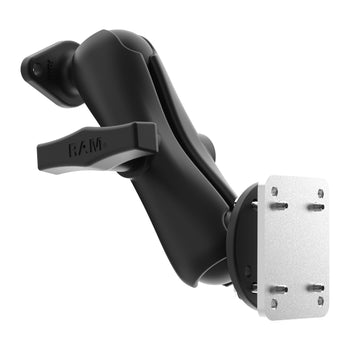

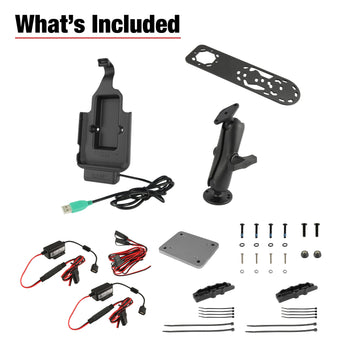

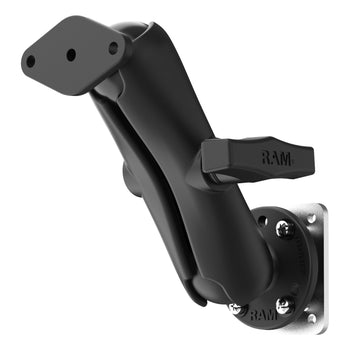

- Bundle includes RAM® EZ-Roll'r™ Dock, RAM® Skin™ microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate
- Dock's pogo pins align with device's pogo pads for charging capabilities, USB-C port connects to power
- AINA's Voice Responder RSM and Vehicle Cradle recommended for bluetooth PTT
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty

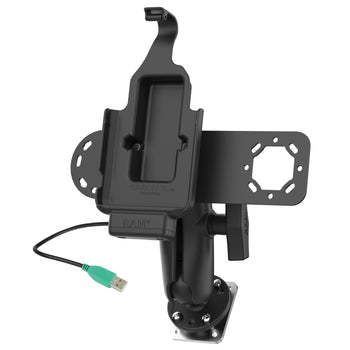

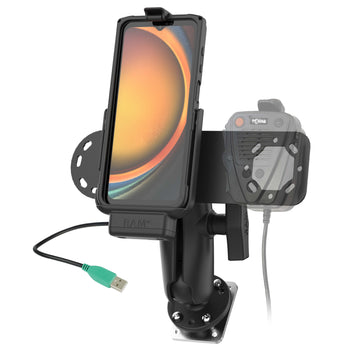

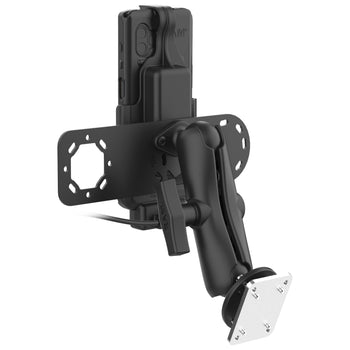

The RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro (RAM-101-SAM84CP-PTT1) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the XCover7 Pro & 6 Pro into mission-critical workflows. Ideal for field operations, public safety, and fleet management, this bundle includes a RAM® EZ-Roll'r™ Dock, RAM® Skin™, microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-A male power connector for direct connection to the hardwire charger, while the AINA Vehicle Charging Cradle connects plugs directly into the second hardwire charger for power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments. Integrated pogo pins on the dock provide connect directly to the pogo pads integrated on the device, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat. Zello, and Kodiak, making it a powerful communication hub for modern mobile teams.
Components
hardware included
Assembly Hardware
Mic Bracket
(2) Hardwire Chargers with USB-A Female Connector
SAE Splitter Cable
(2) Cable Clamps
Dashboard Backing Plate with Hardware
socket to socket length
4.66"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Steel
Marine-grade aluminum
High strength composite
packaging type
Box
input voltage
10-30VDC (Both Chargers)
output voltage
5-9VDC @ 2.5A (Both Chargers)
input connector
Bare Wire (via SAE Splitter)
output connector
USB-A Female
regulatory
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications
E-Mark Certification
RCM Certification
IEC/UL 62368-1
Weight
2.037 kg
