RAM® Short Bracket Adapter for Speakers & Microphones

£12.99 (Incl. VAT)
Print Details
RAM® Short Bracket Adapter for Speakers & Microphones
Part#:RAM-101-MIC1U UPC:793442006937

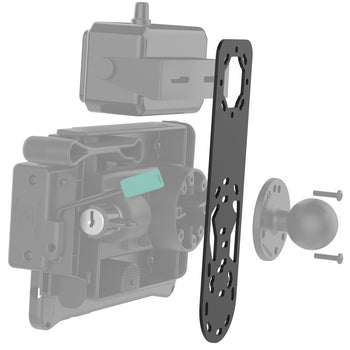

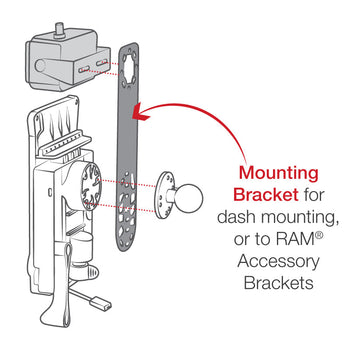

Attach a speaker or microphone to your RAM® Tab-Tite™ or RAM® Tab-Lock™ cradle with the RAM® Speaker/Microphone Bracket. Simply install the bracket between the cradle and the ball base – hardware is included for attaching the bracket to any cradle. Compatible with speakers, microphones and accessories that use the common AMPS hole pattern, the bracket features four spaced AMPS hole pattern sets that allow for various mounting heights. Also included is a vertical and horizontal set of holes for attaching a diamond base. Measuring 8.99" in length, this bracket supports both portrait and landscape placement.

hardware included

(2) #8 x 3/4" Sheet Metal Screws
(4) #8-32 x 3/4" Machine Screws
(2) #8-32 x 3/8" Machine Screws
(2) #8-32 Nylock Nuts
(2) M4 x 35mm Machine Screws
(2) M4 Nylock Nuts

product dimensions

Overall Length: 8.99"

hole pattern

See Drawing


Powder coated steel

packaging type

Poly Bag


0.24 kg
