RAM® EZ-Roll'r™ Powered Dock for XCover6 Pro with OEM or RAM® Skin™
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Powered dock designed specifically for the Samsung Galaxy XCover6 Pro wrapped in the RAM® Skin™ or Samsung OEM case
- Next gen charging with integrated pogo pin docking contacts that match the XCover6 Pro's pogo pads for a fumble-free charging experience and port-protection

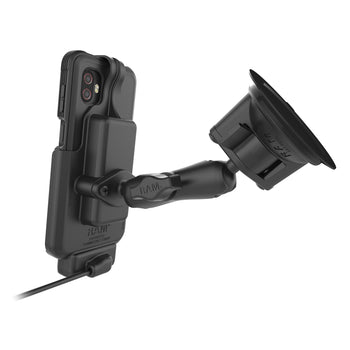

- 2-hole AMPS hole pattern on the back of the dock to install a B or C Size RAM® diamond ball base
- Backed by a 3-year warranty

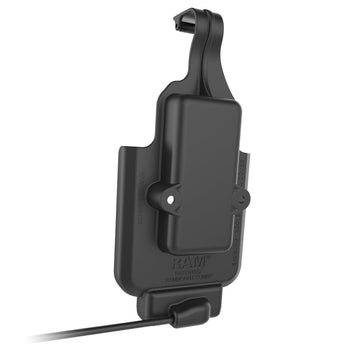

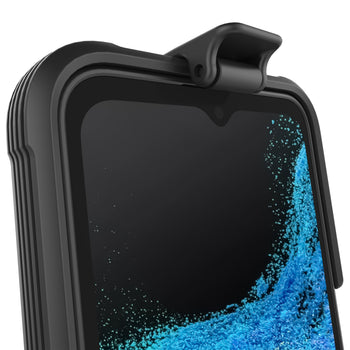

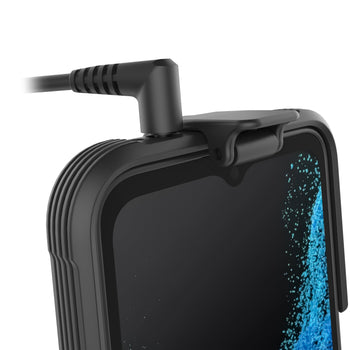

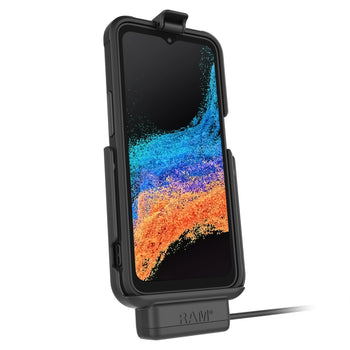

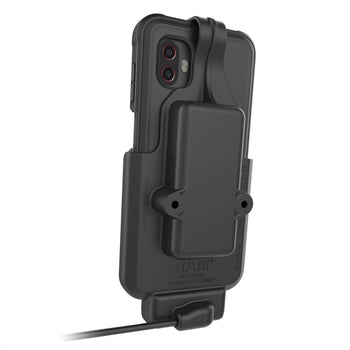

This RAM® EZ-Roll’r™ powered dock is designed specifically for the Samsung Galaxy XCover6 Pro wrapped in the RAM® Skin™ (RAM-SKIN-SAM84) or Samsung OEM Smart Case case and features two integrated pogo pins that provide charging capabilities to the device. While keeping the XCover6 Pro secure, the RAM® EZ-Roll’r™ powered dock also leaves the device’s buttons and cameras exposed and usable. For mounting, pair the dock with B or C size RAM® diamond ball bases. This powered dock receives power via USB Type-A male pigtail and is compatible with the GDS® 2-port USB cigarette charger as well as the GDS® modular hardwire charger with USB Type-A female connector.
hardware included
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
product dimensions
Overall Height: 7.88"
Overall Width: 3.63"
Overall Depth: 1.63"
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
input connector
USB Type A Male
input cable length
1.25 Meters
Warranty
3 year warranty
Weight
0.14 kg
