RAM® Single Pivot Magnetic Mount with Knob
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 4 to 6 week timeframe. Please contact our sales team for more accurate delivery information.
You can also order the individual component parts below.
Swipe to see more images.
Features
- Low-profile, magentic mounting solution for heavy-duty environments
- Single articulation joint pivots up to 180-degrees; extended knob for easy adjustments

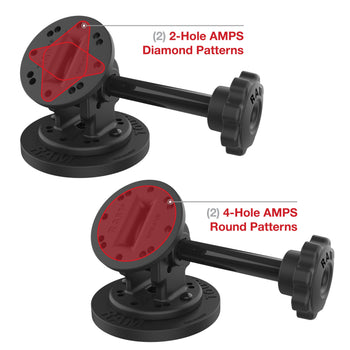

- One end features two 2-hole AMPS and two 4-hole AMPS patterns, second end features the RAM® Tough-Mag™ 88mm base
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
The RAM® Single Pivot Magnetic Mount with Knob (RAP-101-PV4-MAG88U) is a low-profile, magnetic mounting solution. One end features both 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock while the other end features the RAM® Tough-Mag™ magnetic base. This solution uses tooth-lock washers to allow users to pivot their device up to 180-degrees and the extended knob makes it easy to adjust the viewing angle of your device. The RAM® Tough-Mag™ base features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.
Components
product dimensions
Overall Height: 2.99"
Overall Width with Knob: 6.31"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"
plate size
Top Plate: 2.5" Diameter
Magnetic Base: 3.46" Diameter
materials
High strength composite
packaging type
Poly Bag
Weight
0.372 kg
