RAM® Tough-Mag™ 88MM Diameter Magnetic Adapter with 2-Hole AMPS Pattern
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
.
Features
- Magnetic base contains 2-hole AMPS pattern with M4 threaded inserts for attaching a holder or base with 2-hole AMPS patterns
- RAM® Tough-Mag™ 88mm base magnetizes to any ferrous metal surface
- 10 industrial-strength N52 grade magnets holds up to 2 pounds
- Rubber coating protects surfaces from scratches
- Backed by a lifetime warranty

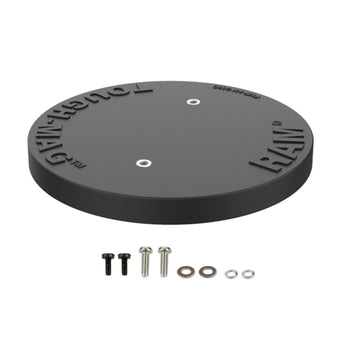

The RAM® Tough-Mag™ 88MM Diameter Magnetic Adapter with 2-Hole AMPS Pattern (RAM-MAG88DU) can be secured to any holder or base to create a low-profile mounting solution that magnetizes to any ferrous metal surface. This base features 10 industrial-strength N52 grade magnets and rubber coating that protects the metal surface you're attaching to.
hardware included
(2) M4 x 10mm Machine Screws
(2) M4 x 12mm Machine Screws
(2) M4 Flat Washers
(2) M4 Lock Washers
product dimensions
Diameter: 3.46" Diameter
Thickness: 5/16"
hole pattern
2-Hole AMPS: 1.912"
packaging type
Poly Bag
Weight
0.323 kg
