RAM® Tab-Tite™ Holder for Samsung Tab Active5 & 3
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Spring-loaded holder secures the Samsung Tab Active5, Tab Active3 or 2

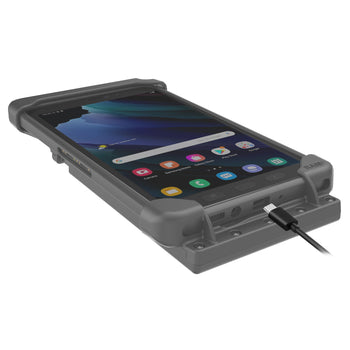

- Access to the charge port allows for use of the Tab Active3's battery bypass feature when no battery installed
- Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

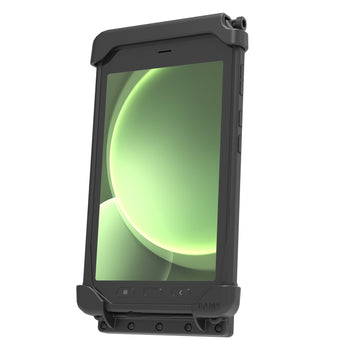

The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab Active5, Tab Active3 and 2 with either the OEM case or the RAM® Skin™. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. The bottom cup intentionally exposes the power connector so if the user has a Tab Active5 & 3 with no battery, the tablet can be inserted and removed without disconnecting the cable. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern.
Components
hardware included

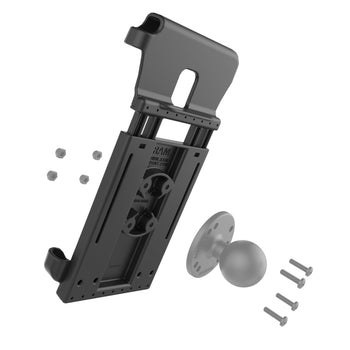

Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
product dimensions
Overall Height: 7 7/8"
Overall Width: 5 1/2"
Overall Thickness: 1 5/8"

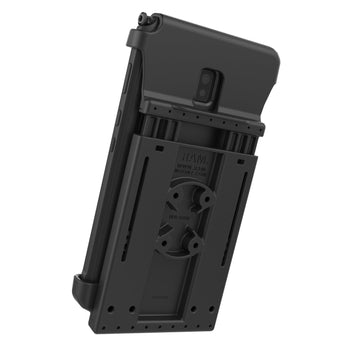

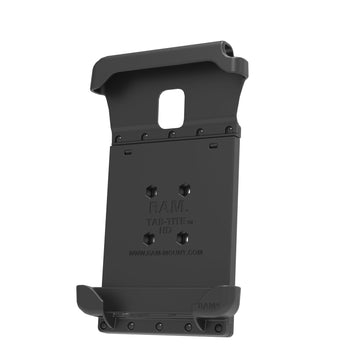

hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
Weight
0.25 kg
