GDS® Uni-Conn™ PTT Vehicle Bundle for Samsung Tab A9
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 1 to 7 week timeframe. Please contact our sales team for more accurate delivery information.
You can also order the individual component parts below.
Swipe to see more images.
Features

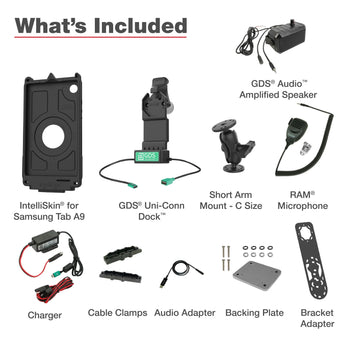

- Bundle includes the GDS® Uni-Conn™ dock, IntelliSkin® Next Gen for Samsung Tab A9, GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps
- Features Push-To-Talk capabilites via GDS® Audio™ Amplified Speaker with PTT Breakout Feature
- Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
- RAM® Mounts Compatible™ and compatible with the GDS® Uni-Conn™ Adapter with Hand Strap
- Back by a 3-year warranty

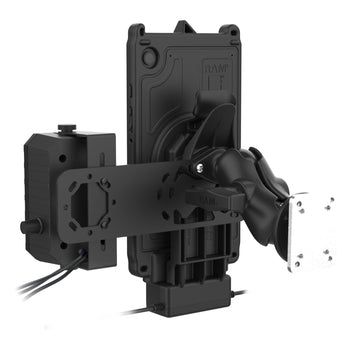

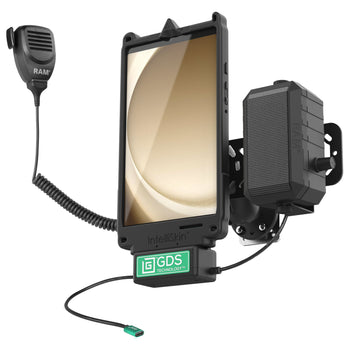

The GDS® Uni-Conn™ PTT Vehicle Bundle for Samsung Tab A9 (RAM-GDS-U1-SAM95-KIT3) is a vehicle dock designed to support the Samsung Galaxy Tab A9 in an IntelliSkin® Next Gen and provide push-to-talk capabilities, ideal for fleets of vehicles. The GDS® Uni-Conn™ uses a USB Type-C power connector to support high speed charging capabilities for the Tab A9 and a single USB Type-A peripheral connector for the RAM® microphone. This turnkey solution includes the GDS® Uni-Conn™ dock, Uni-Conn™ Adapter IntelliSkin® Next Gen for Samsung Tab A9, GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps. The GDS® Uni-Conn™ dock is backed by a 3-year warranty. One Dock to Connect Them All™ Always Protected. Always Connected.®
Components
hardware included
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) Vehicle Hardwire Charger
socket to socket length
2.5"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
C Size (1.5")
materials
Steel
Marine-grade aluminium
High strength composite
packaging type
Box
output voltage
5V - 12V @ 3A max
power output
15W
input connector
USB Type-C
USB Type A for 1 Peripheral
input cable length
215mm
output cable length
215mm
Warranty
3 year warranty
Weight
2.723 kg
