GDS® Uni-Conn™ Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.
Features

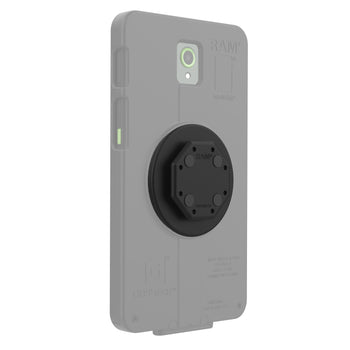

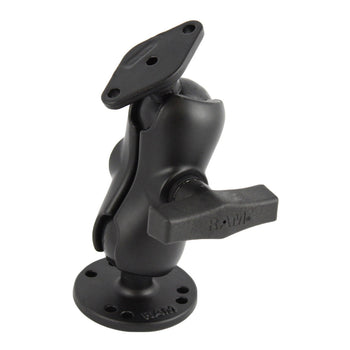

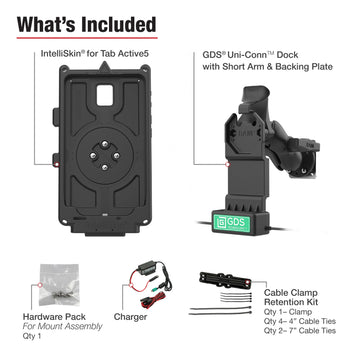

- Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab Active5, C size double ball mount with short arm, backing plate adapter, and cable clamp

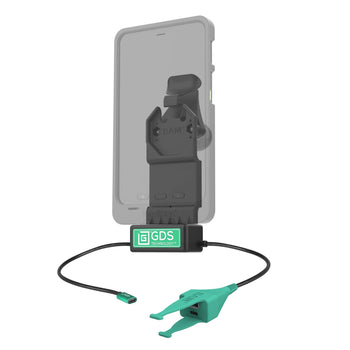

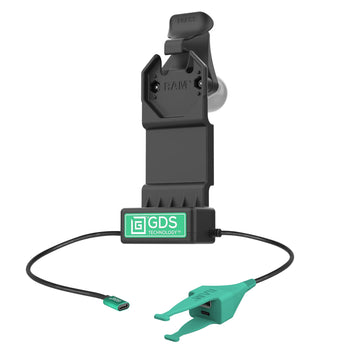

- Dock features GDS® Technology™ for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device
- Uni-Conn™ dock features an easy device insertion and removal
- Backed by a 3-year warranty

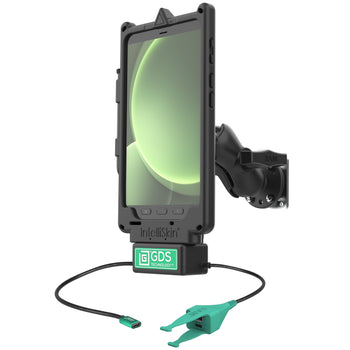

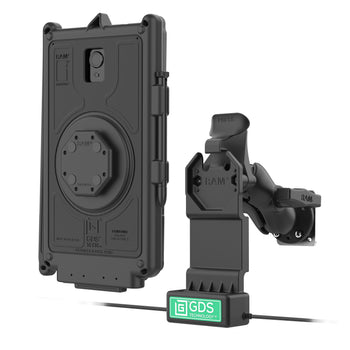

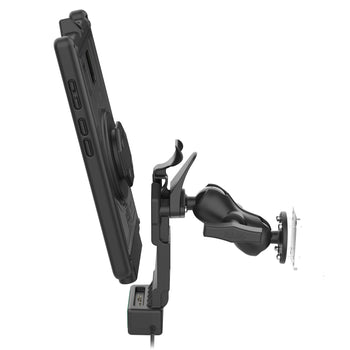

The GDS® Uni-Conn™ Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5 (RAM-GDS-U1-SAM90-KIT5) is a comprehensive kit of everything needed to deploy the Tab Active5 in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Tab Active5, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-A pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more. The integrated pogo pins connect to the IntelliSkin®-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™
Components
hardware included
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

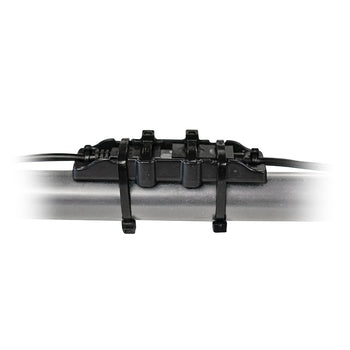

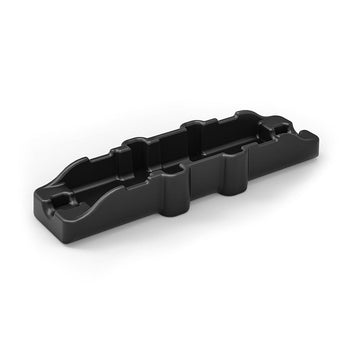

(1) Cable Clamp

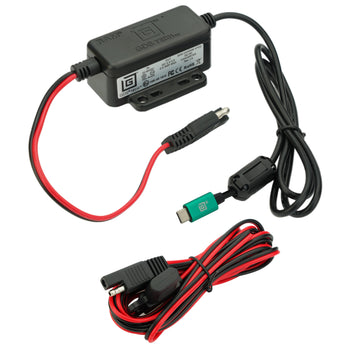

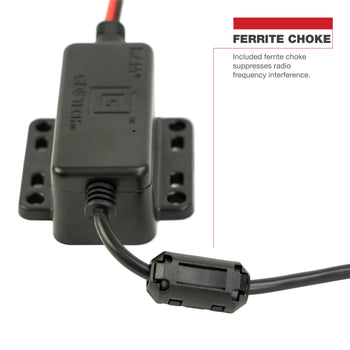

(1) Vehicle Hardwire Charger
socket to socket length
2.5"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
C Size (1.5")
materials
Steel
Marine-grade aluminum
High strength composite
packaging type
Box
output voltage
5V - 12V @ 3A max
power output
15W
input connector
USB Type-C (Power In)
input cable length
215mm
output connector
(1) USB Type-C & (1) USB Type-A (Peripheral)
output cable length
215mm
peripheral output
900mAh (per port)
Warranty
3 year warranty
Weight
1.33 kg
