GDS® Uni-Conn™ Powered Dock with Dual USB-A & USB-C Data

£137.99 (Incl. VAT)

Currently out of stock, maximum wait time will be 6 weeks.

Features

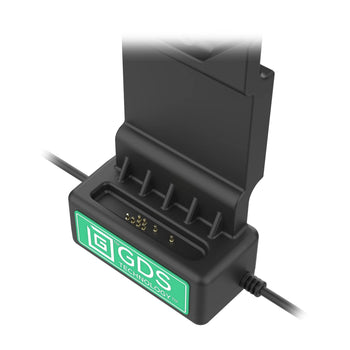

  • Clip-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to two additional USB peripherals

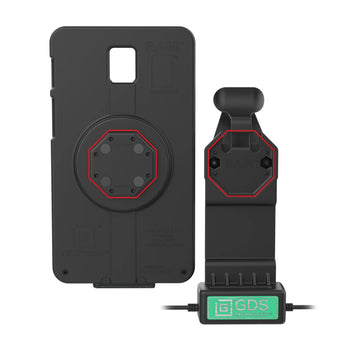

  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • USB Type-C Female connector provides high-speed charging and dual USB-A and USB Type-C connects up to peripheral devices
  • RAM® Mounts Compatible™
  • Backed by a 3-year warranty
GDS® Uni-Conn™ Powered Dock with Dual USB-A & USB-C Data
Part#:RAM-GDS-DOCK-U1CP-CAU UPC:793442022708 Patented

Overview

The GDS® Uni-Conn™ Powered Dock with Dual USB-A & USB-C Data (RAM-GDS-DOCK-U1CP-CAU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate up to two peripheral devices into your solution with the dual USB-A and USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.

hardware included

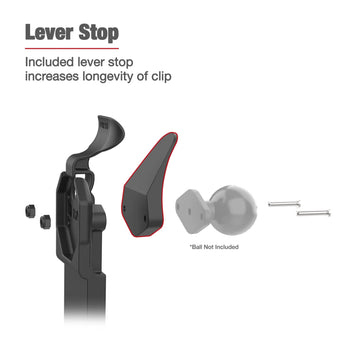

(1) Lever Stop
(2) #8-32 x 1" Machine Screws
(2) #8-32 Nylock Nuts

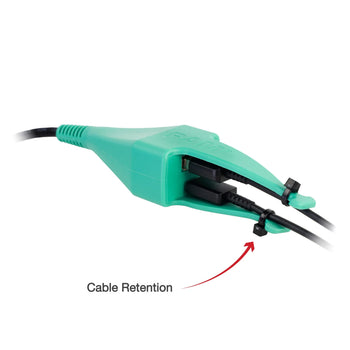

(1) Cable Clamp Kit

product dimensions

Overall Width: 3.16"
Overall Height: 8.44"
Overall Depth: 3.03"

hole pattern

2-Hole AMPS: 1.912"

materials

High strength composite

packaging type

Poly Bag

output voltage

Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max

power output

15W

input connector

USB Type-C (Power In)

input cable length

215mm

output connector

(1) USB Type-C & (1) USB Type-A (Peripheral)

output cable length

215mm

peripheral output

900mAh (per port)

Warranty

3 year warranty

Weight

0.25 kg

Additional Information

The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
