Locking GDS® Tough-Dock™ + Dual USB-A for Tab Active4 Pro
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features

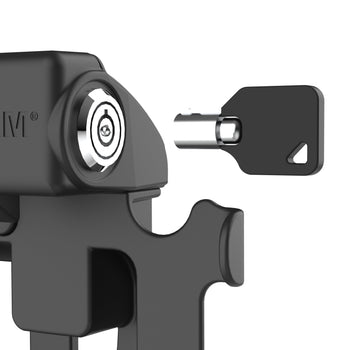

- Spring-loaded key locking vehicle dock designed specifically for the Samsung Galaxy Tab Active4 Pro wrapped in an IntelliSkin® Next Gen protective sleeve

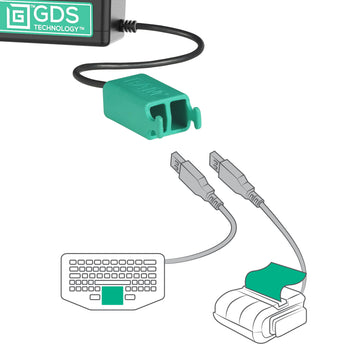

- Incorporated into the bottom docking cup is a USB Type-C Female connector for providing power to the dock and dual USB Type-A for peripheral connection
- RAM® Mounts Compatible™ including RAM® NFC Extender and GDS® Hand-Stand™ Hand Strap and Kickstand
- Backed by a 3-year warranty

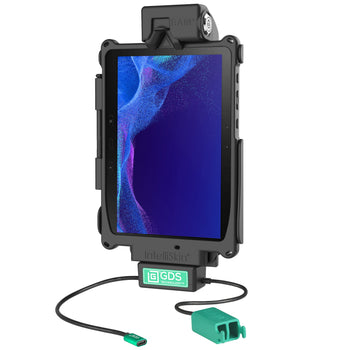

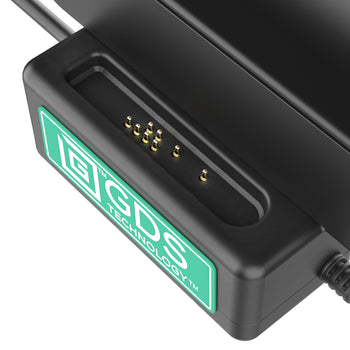

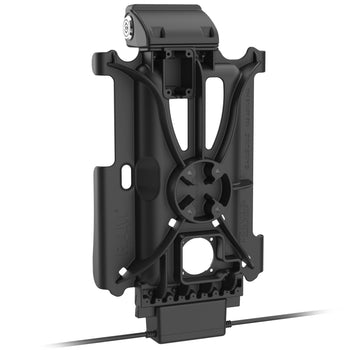

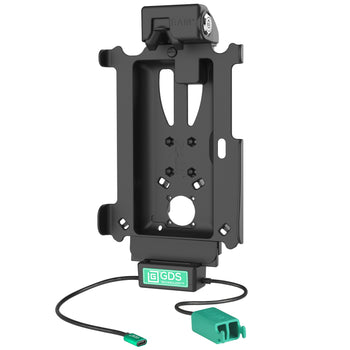

This Locking GDS® Tough-Dock™ vehicle dock (RAM-GDS-DOCKL-SAM54NCD2U) is designed to support the Samsung Galaxy Tab Active4 Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a dual USB Type-A connector to support up to two peripheral add-ons such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is designed with housing that accomodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Components
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable
(2) Keys
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 12V @ 3A max
Each Peripheral: 5V @ 900mA max
power output
15W
input connector
USB Type-C
Dual USB Type A for 2 Peripherals
output cable length
215mm
peripheral output
900mAh (per port)
Warranty
3 year warranty
Weight
0.761 kg
