GDS® Power + Dual USB-A Data Dock Cup for IntelliSkin® Next Gen Tablets
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features
- Upgrade your existing GDS® vehicle dock to enable high speed charging capabilities for devices using IntelliSkin® Next Generation sleeves, using an 8-pin connection
- Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty

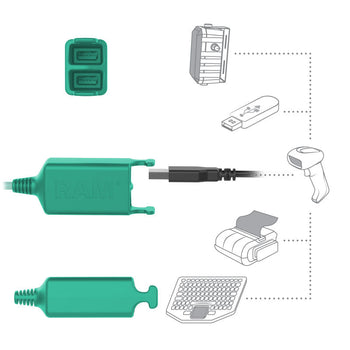

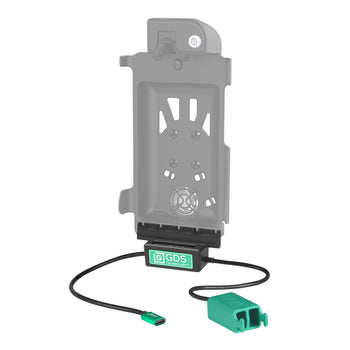

This GDS® vehicle dock bottom cup is designed specifically to support IntelliSkin® Next Generation-enabled devices, and features 8 pogo pins and a USB Type-C pigtail. This dock up also includes an additional dual USB Type-A cable for connecting up to two external devices such as keyboards, scanners or other peripherals. When paired with the proper top cup, it can be used to upgrade your existing GDS® vehicle dock. Always Protected. Always Connected.®
materials
High strength composite
packaging type
Poly Bag
output voltage
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
Each Peripheral: 5V @ 900mA max
power output
15W
input connector
USB Type-C
Dual USB Type A for 2 Peripherals
input cable length
215mm
output cable length
215mm
peripheral output
900mAh (per port)
Warranty
3 year warranty
Weight
0.159 kg
