GDS® Tough-Dock™ + Dual USB-A for Samsung Tab A7 Lite 8.7"

Part#: RAM-GDS-DOCK-SAM80CD2U
UPC:793442101069Patented & Pats. Pend.

£218.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks.

For a more accurate lead time please contact our sales team.

Swipe to see more images.

Features

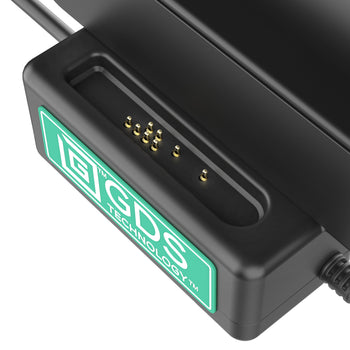

  • Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide charging and connection for up to two additional USB peripherals
  • Designed specifically for the Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) wrapped in an IntelliSkin® Next Gen protective sleeve
  • Incorporated into the bottom docking cup is a USB Type-C Female connector for providing power to the dock and dual USB Type-A for peripheral connection
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty

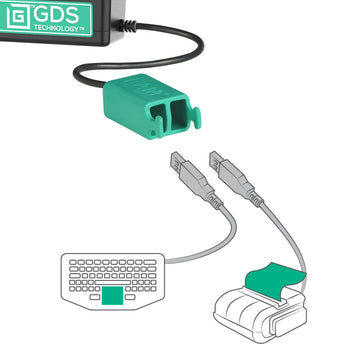

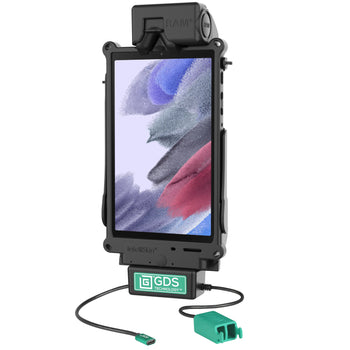

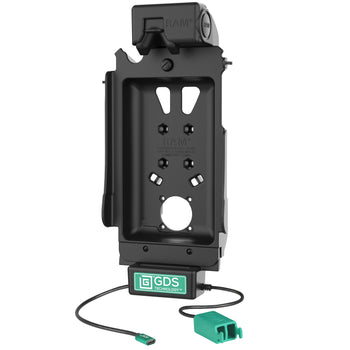

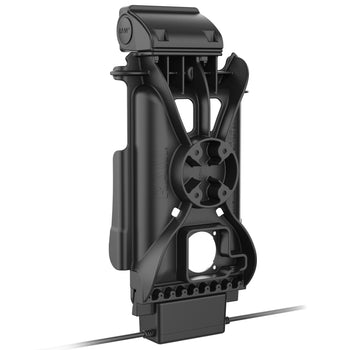

This GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a dual USB Type-A connector to support up to two peripheral add-ons such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

output voltage

5V - 12V @ 3A max
Each Peripheral: 5V @ 900mA max

power output

15W

input connector

USB Type-C
Dual USB Type A for 2 Peripherals

output cable length

.21 Meters

Warranty

3 year warranty

Weight

0.57 kg
