GDS® Tough-Dock™ for Tab Active5 & 3 with NFC Extender
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging
- Designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in an IntelliSkin® Next Gen protective sleeve
- USB Type-C Female connector incorporated into the bottom docking cup provides high speed charging to the dock

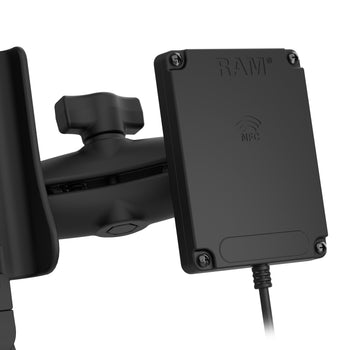

- NFC repeater supports passage of data to a device from cards, tags, buttons, etc; supports Tap To Pay, asset tracking, time tracking, attendance, and much more
- Backed by a 3-year warranty

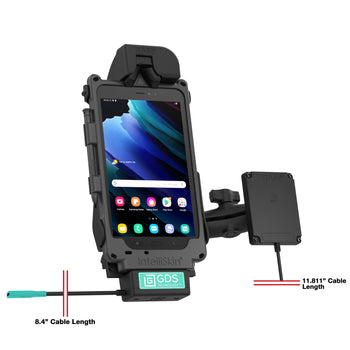

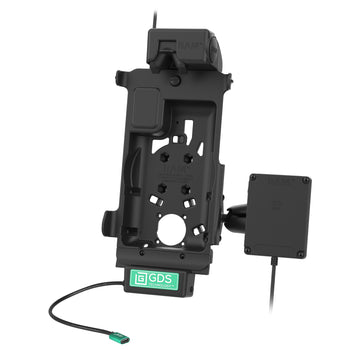

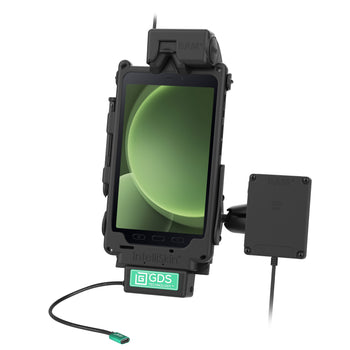

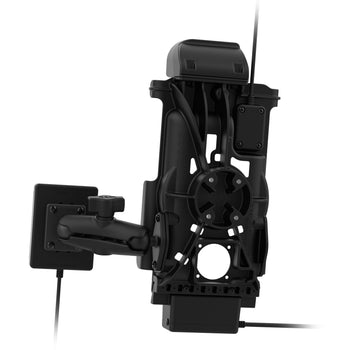

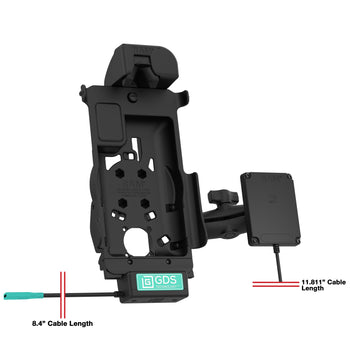

The GDS® Tough-Dock™ is the newest vehicle dock in the GDS® Tech™ line of vehicle docks designed to support the Samsung Galaxy Tab Active5 & Tab Active3 in an IntelliSkin® Next Gen protective sleeve for your fleet. This kit features a diamond ball base paired with a double socket arm that enables use of the RAM® NFC Extender. The NFC extender acts as an extension of NFC readers on the back of compatible devices, giving end users easier access to programs like Tap to Pay, asset tracking, time management, and more. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities for the Samsung Galaxy Tab Active5 & Tab Active3. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Components
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
Marine-grade aluminium
packaging type
Poly Bag
output voltage
5V - 12V @ 3A
power output
15W
input connector
USB Type-C
Warranty
3 year warranty
Weight
0.34 kg
Additional Information
Potential interference of NFC functionality may occur when positioned close to strong magnets.
