GDS® Tough-Dock™ Body for Tab Active3 with NFC Extender
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features
- RAM® Tough-Dock™ body component designed specifically to fit an IntelliSkin® Next Gen-wrapped Samsung Galaxy Tab Active3
- Allows installation of desired locking or non-locking latch, bottom cup for charging and/or data transfer, as well as a housing for optional fan accessory add-on; all additional components not included

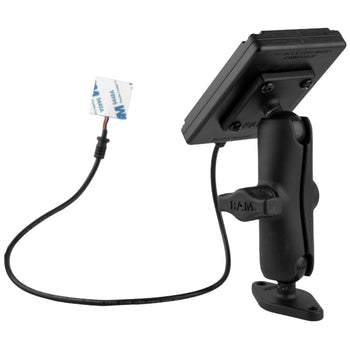

- NFC repeater supports passage of data to a device from cards, tags, buttons, etc; supports Tap To Pay, asset tracking, time tracking, attendance, and much more
- Made of high-strength composite materials for durability and reliability in the most demanding environments
- Backed by a 3-year warranty

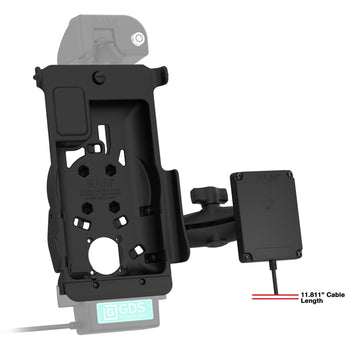

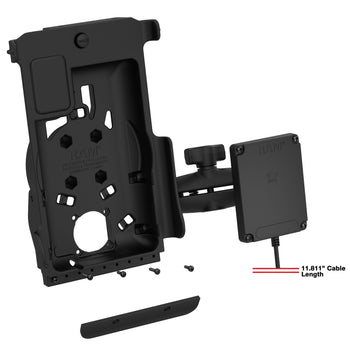

This GDS® Tough-Dock™ body component is essential for building a complete GDS® Tough-Dock™ or Cool-Dock™. The body component is designed specifically to hold an IntelliSkin® Next Gen-wrapped Samsung Galaxy Tab Active3. To complete the build, simply choose a compatible key-locking or non-locking latch, compatible bottom cup with various charging and data transfer capabilities, as well as an optional fan accessory to build a GDS® Cool-Dock™. This kit features a diamond ball base paired with a double socket arm that enables use of the RAM® NFC Repeater. The NFC repeater acts as an extension of NFC readers on the back of compatible devices, giving end users easier access to programs like Tap to Pay, asset tracking, time management, and more. Always Protected. Always Connected.®
Components
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.642 kg
Additional Information
Potential interference of NFC functionality may occur when positioned close to strong magnets.
