GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.
Features

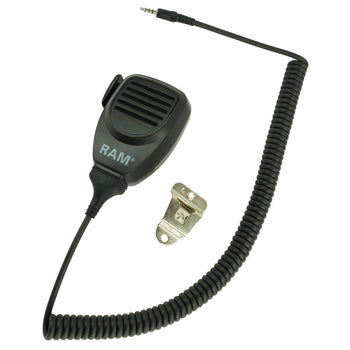

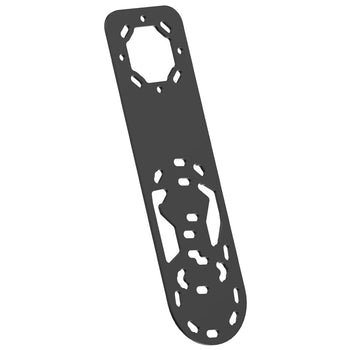

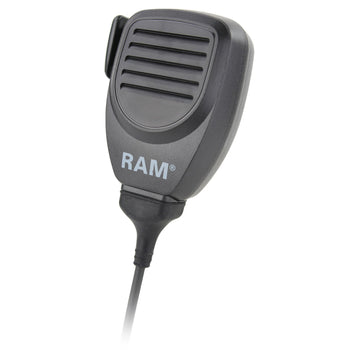

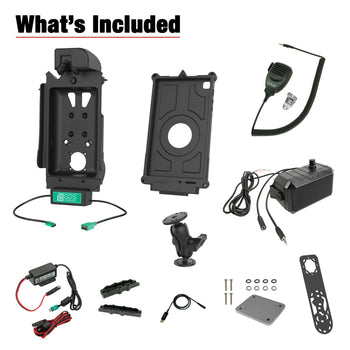

- Bundle includes the GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps
- Features Push-To-Talk capabilites via GDS® Audio™ Amplified Speaker with PTT breakout feature

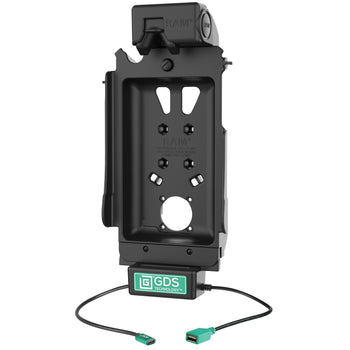

- Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty

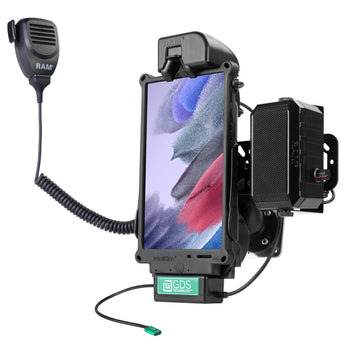

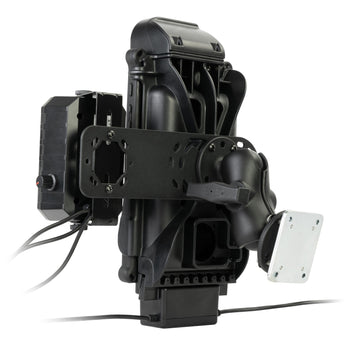

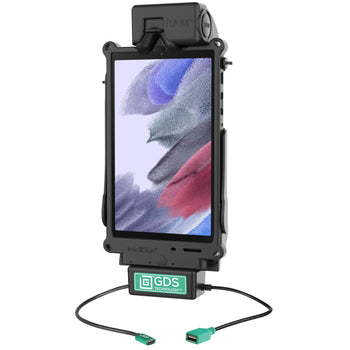

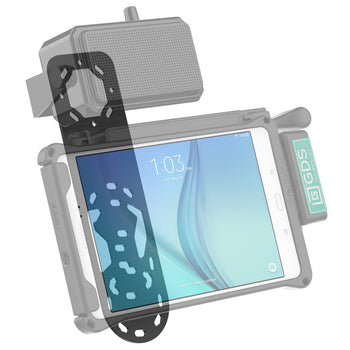

The GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7" (RAM-GDS-101B2-SAM80-PTT1U) is a vehicle dock designed to support the Samsung Galaxy Tab A7 Lite 8.7" in an IntelliSkin® Next Gen protective sleeve and provide push-to-talk capabilities, ideal for fleets of vehicles. The GDS® Tough-Dock™ uses a USB Type-C power connector to support high speed charging capabilities for the Tab A7 Lite and a single USB Type-A peripheral connector for the RAM® microphone. This turnkey solution includes the GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Components
hardware included
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) Vehicle Hardwire Charger
socket to socket length
2.5"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
C Size (1.5")
materials
Steel
Marine-grade aluminium
High strength composite
packaging type
Box
output voltage
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
Peripheral: 5V @ 900mA max
power output
15W
input connector
USB Type-C
USB Type A for 1 Peripheral
input cable length
215mm
output cable length
215mm
Weight
2.907 kg
