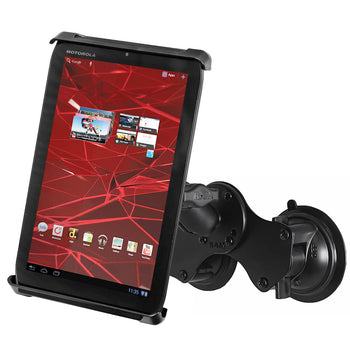

RAM® Tab-Tite™ with RAM® Twist-Lock™ Dual Suction for Small Tablets

Part#: RAM-B-189-TAB-SMU
UPC:793442944611Patented

£94.99 (Incl. VAT)

Variants

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Special Order Item. Please contact our sales team for availability.

You can also order the individual component parts below.

Swipe to see more images.

Features

  • Spring-loaded holder secures iPad mini 1, 2, 3, and 4 with light-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Includes RAM® Twist-Lock™ dual suction cup base and medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composite and steel components for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty*
Overview

hardware included

Assembly Hardware

holder dimensions

Height Range: 7" - 10"
Width Range: 4" - 5.31"
Depth Range: .44" - 1.06"

suction size

(2) 3.3" Diameter Bases, Total Width 7.95"

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Powder coated steel
Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.827 kg

Additional Information

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
