RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Short

£40.99 (Incl. VAT)

Currently out of stock, maximum wait time will be 6 weeks.

Print Details
RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Short
Part#:RAM-B-174U-A UPC:793442952623 Patented

Overview

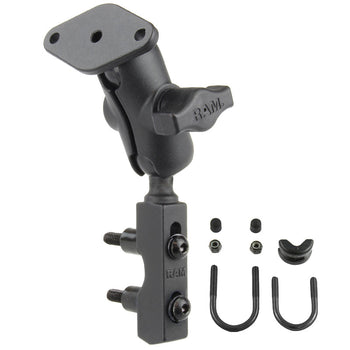

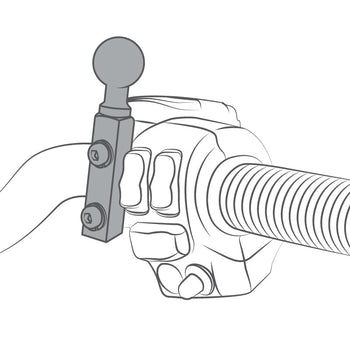

The RAM-B-174U-A consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, short length double socket arm and diamond plate for mounting to RAM device cradles or anything with an AMPs hole pattern. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing position.

hardware included

(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

1.75"

hole pattern

2-Hole AMPS: 1.912"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

0.33 kg
