RAM® Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base

Part#: RAM-B-309-7U
UPC:793442904110Patented

£20.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Swipe to see more images.

Features

  • Combination handlebar and brake/clutch reservoir base for motorcycles; includes U-bolt hardware
  • Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

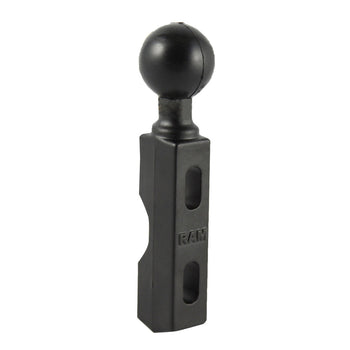

The RAM-B-309-7U combination handlebar and brake/clutch reservoir base provides the ultimate flexibility for mounting to your motorcycle. Attach the base to either your handlebar or brake/clutch, and achieve near-infinite adjustability and ideal viewing angles for your phone, GPS unit, or action camera. The zinc-coated metal U-bolt accommodates rails ranging from 0.5" to 1.25" in diameter. Hardware included.

Overview

hardware included

(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

0.211 kg
