RAM® Brake/Clutch Reservoir Mount with LED Spotlight

Part#: RAM-B-174-152U
UPC:793442910500Patented

£141.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Special Order Item. Please contact our sales team for availability.

You can also order the individual component parts below.

Swipe to see more images.

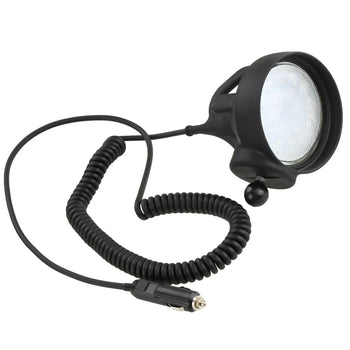

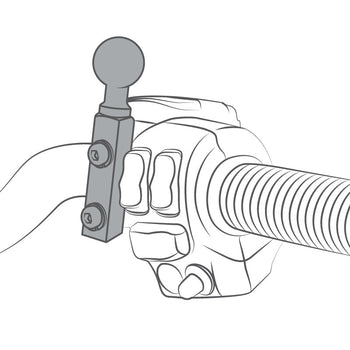

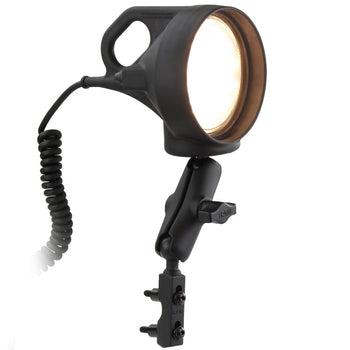

The RAM-B-174-152U consists of a 1" dia. ball rubber coated LED spotlight with brake/clutch reservoir and handlebar/rail mount. The base consists of a 1" diameter rubber ball, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Multiple pivot points, rubber ball and socket technology allows for almost infinite adjustment and perfect positioning angles.

Components

hardware included

(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

bulb specifications

PAR36
12 Volts DC
9 Watts
1900 Lumens
Sealed Beam
30-Degree Spot Light
Frosted Lens
4500K colour Temp

clamp range

.5" - 1.25" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
Rubber

packaging type

Poly Bag

Weight

0.232 kg
