RAM® X-Grip® Phone Mount with Drill-Down Base & Backer Plate

£60.99 (Incl. VAT)

Currently out of stock, maximum wait time will be 6 weeks.

Print Details
RAM® X-Grip® Phone Mount with Drill-Down Base & Backer Plate
Part#:RAM-B-138-UN7-225B2U UPC:793442938733 Patented

Overview

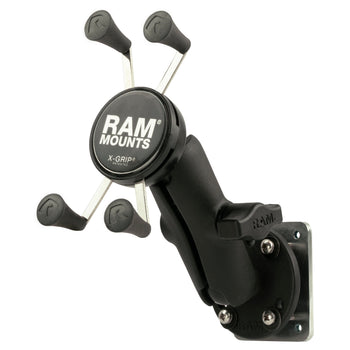

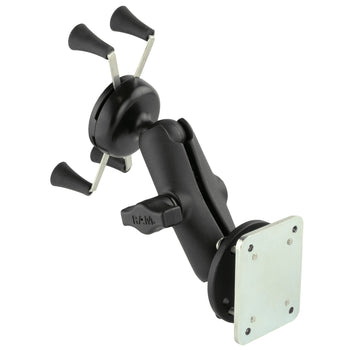

The RAM-B-138-UN7-225B2U consists of a 2.10" x 2.60" steel backer plate, 2.5" diameter round base, double socket arm and universal spring loaded X-Grip® cradle for cell phones. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

hardware included

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

holder dimensions

Width Range: 1.875" - 3.25"
Depth Range: .875" max

socket to socket length

3"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite
Stainless steel

packaging type

Poly Bag

Weight

0.55 kg

Additional Information

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
