RAM® Drill-Down Dashboard Ball Base with Backing Plate - B Size
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features
- 2.5" round plate with B size 1" rubber ball connects to included 2.10" x 2.60" steel backing plate that connects to RAM® components containing the universal AMPS hole pattern
- Connect a B size RAM® double socket arm and device holder for your use-case; ball and socket technology allows for near-infinite adjustability
- Components made of powder-coated, marine-grade aluminium, and steel for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

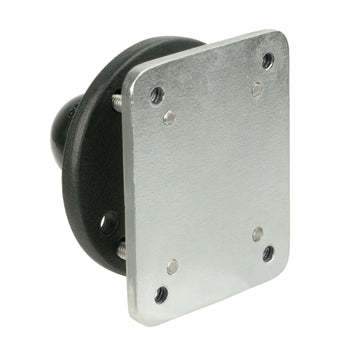

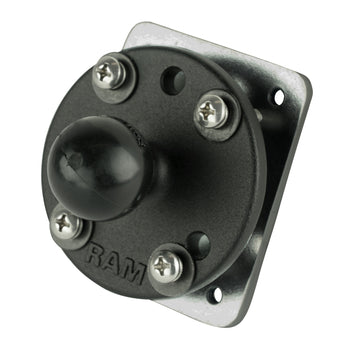

Meet your new go-to mount and component option for pairing any holder or dock with a dashboard drill-down mount. The RAM-B-202-225-2U consists of a 1" B size rubber ball connected to a 2.5" diameter round plate with the universal AMPS hole pattern and one 2.10” x 2.60” steel backing plate (hardware included). Connect a B size RAM® double socket arm and device holder that's perfect for your use-case. RAM®'s patented rubber ball and socket technology dampens shock and vibration and allows for near-infinite adjustment, enabling perfect viewing and operating angle of your device.
Components
hardware included
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Machine Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
hole pattern
Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
Steel
packaging type
Poly Bag
Weight
0.186 kg
