RAM® Drill-Down Mount with Garmin Spine Clip Holder

Part#: RAM-B-138-GA76U
UPC:793442012464Patented

£35.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Special Order Item. Please contact our sales team for availability.

You can order the individual component parts below or we'll try to offer a suitable alternative.

Swipe to see more images.

Features

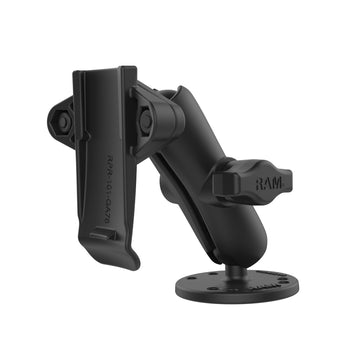

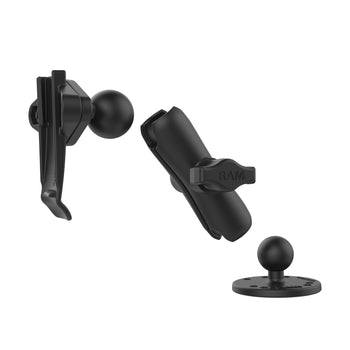

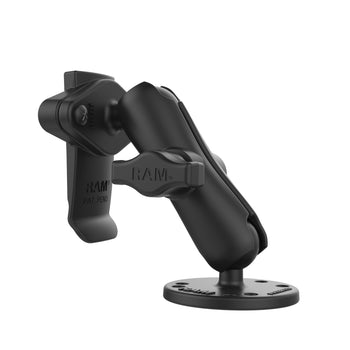

  • Kit includes RAM® Spine Clip Holder for Garmin, B size diamond ball base, medium double socket arm and RAM® Drill-Down base
  • Holder secures any Garmin handheld device with an integrated spine connection
  • Drill-down round base contains universal AMPS hole pattern
  • Backed by a lifetime warranty

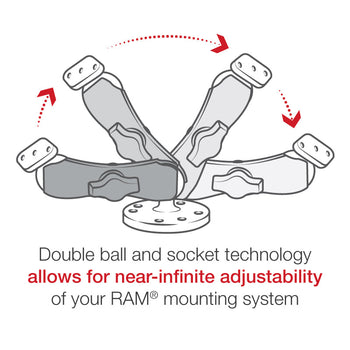

The RAM® Spine Clip holder is a mount adapter that easily clips into the integrated spine connection on a wide variety of Garmin devices. This mount includes a 2.5" diameter round base with the universal AMPS hole pattern and a medium length RAM® double socket arm so you can drill down directly into your desired surface, or secure with sturdy hardware.

hardware included

Assembly Hardware

socket to socket length

3"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size

2.5" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.259 kg
