RAM® Drill-Down Mount with Double Socket Arm with Action Camera Adapter
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team , alternatively order the individual component parts below.
Swipe to see more images.

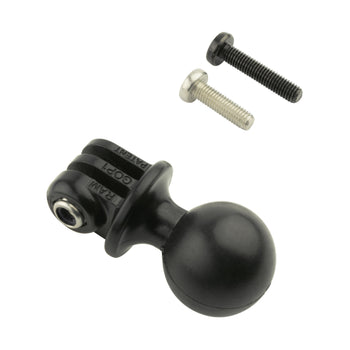

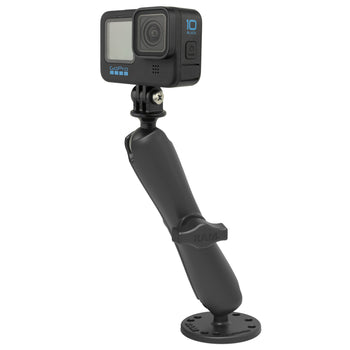

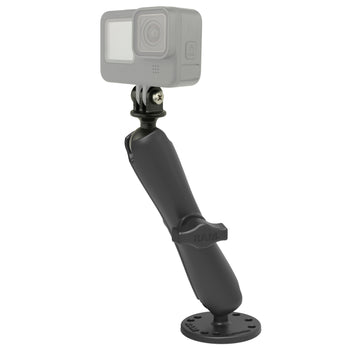

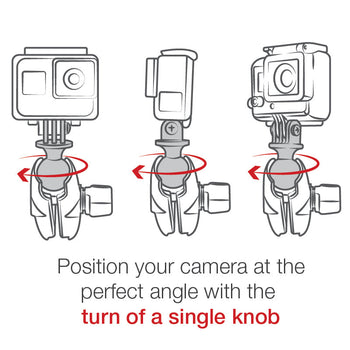

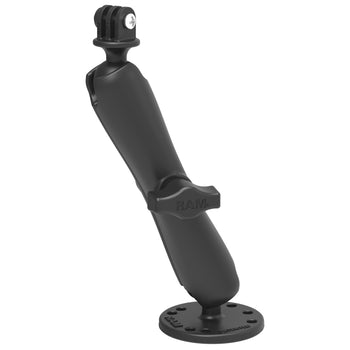

The RAM-B-138-C-GOP1 consists of a 2.5" diameter round base with the universal AMPS hole pattern, LONG size double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The RAM-B-138-A-GOP1 can be used as a drill-down or a temporary, removable mounting solution with the addition of the RAP-339U accessory. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.
Components
hardware included
Assembly Hardware
socket to socket length
5.31"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size
2.5" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Retail Bag
Weight
0.34 kg
