RAM® Finger-Grip™ Universal Holder with Yoke Clamp Base
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team , alternatively order the individual component parts below.
Swipe to see more images.

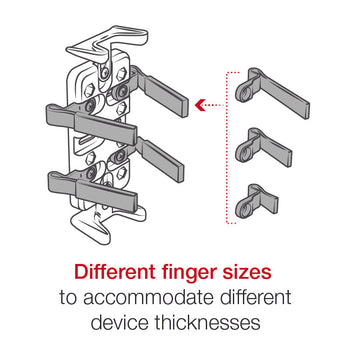

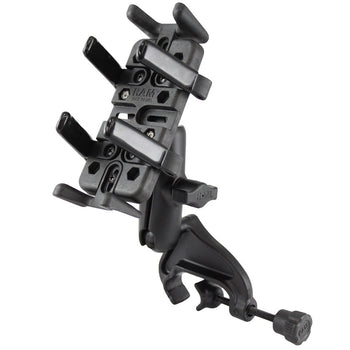

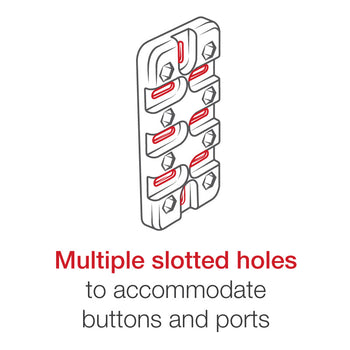

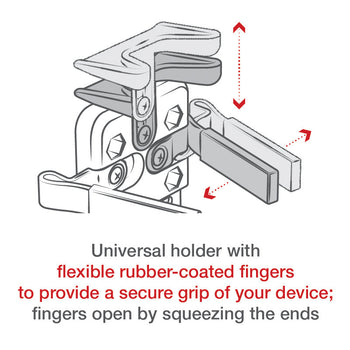

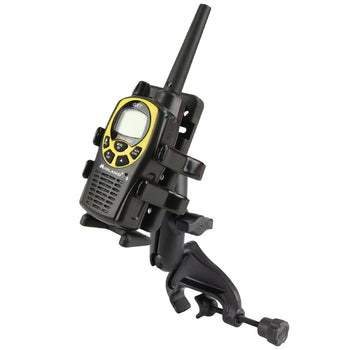

The RAM® Finger-Grip™ is a universal holder that can accommodate a wide range of devices including GPS, handheld radios, phones, bluetooth speakers, and much more. Included with the holder are three sets of four flexible rubber-coated fingers to grip your device. The main backing plate consists of multiple slotted holes where any set of finger grips can be positioned to hold your device firmly. When positioned correctly, your device can easily wedge in and out of the holder; suited for any rough environment. Also included are two sets of optional top and bottom supports to add even more stability to your device if needed. This sku also includes a medium length B size arm as well as a yoke clamp base for yokes for yokes between .625" and 1.25" in diameter.
Components
hardware included
Assembly Hardware
holder dimensions
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
clamp range
.625" - 1.25"
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.55 kg
