RAM® Double Ball Yoke Clamp Mount with Diamond Plate - Long
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team , alternatively order the individual component parts below.

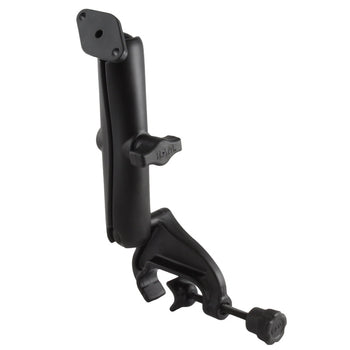

The RAM-B-121-C-238U consists of a yoke clamp base, LONG length double socket arm and 2.43" x 1.31" diamond base. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The diamond base has two holes 1.912" from centre to centre, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
Components
clamp range
.625" - 1.25"
socket to socket length
5.31"
hole pattern
2-Hole AMPS: 1.912"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.43 kg
