RAM® Drill-Down Double Ball Mount for Humminbird Piranha + More

£37.99 (Incl. VAT)

Currently out of stock, maximum wait time will be 6 weeks.

Print Details
RAM® Drill-Down Double Ball Mount for Humminbird Piranha + More
Part#:RAM-B-107-1U UPC:793442110726

Overview

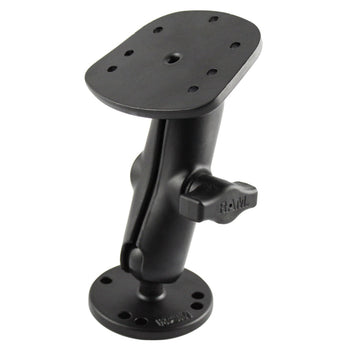

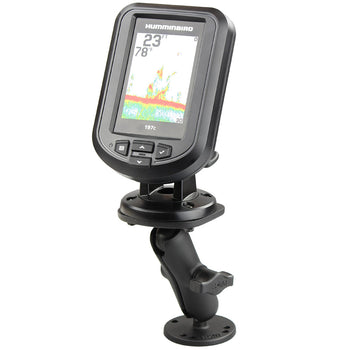

The RAM-B-107-1U, powder coated marine grade aluminium mount, consists of a double socket arm, one 2.5" diameter round base and connecting Humminbird/Eagle/Lowrance marine base. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at the cradle base and bottom base. With a twist of the arm knob, you can move the marine mount to your optimum viewing position.

product dimensions

Overall Height: 5"

socket to socket length

3"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

plate size

Top Plate: 3.29" x 2.85"
Bottom Plate: 2.5" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

0.28 kg

Components
