RAM® Drill-Down Double Ball Mount for Humminbird Helix 5 - Medium
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features

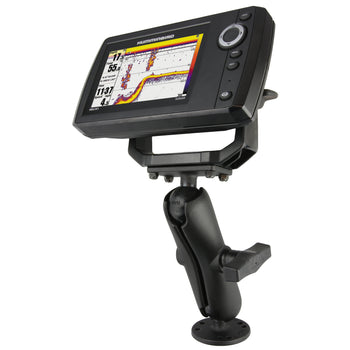

- Complete flat surface, drill-down mounting solution for the Humminbird Helix 5; RAM® Mounts ball and socket technology allows for near-infinite adjustability

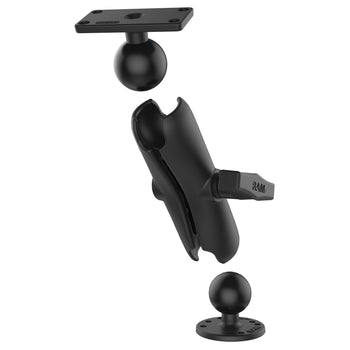

- Includes 2.5" round base with C size 1.5" rubber ball, medium length C size double socket arm, and a 1" x 2.5" rectangle base with C size 1.5" rubber ball that connects to your Humminbird Helix 5
- Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty

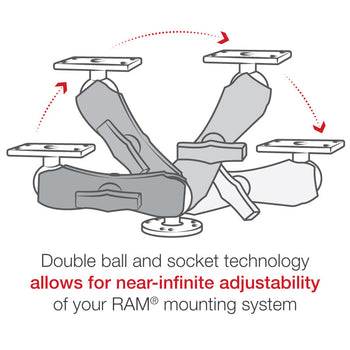

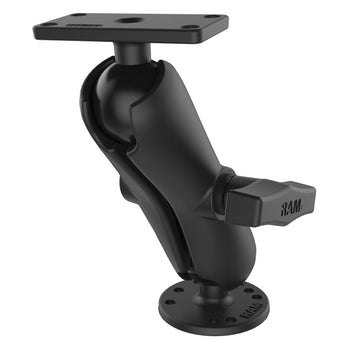

The RAM-202-153-202U powder-coated, marine-grade aluminium Humminbird Helix 5 mount consists of a medium length double socket arm, a 2.5" diameter round base with a 1.5" C size ball, and one 1" x 2.5" rectangular plate with a 1.5" C size ball and 4-hole pattern. Rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle. Compatible with versions of the Humminbird Helix 5.
Components

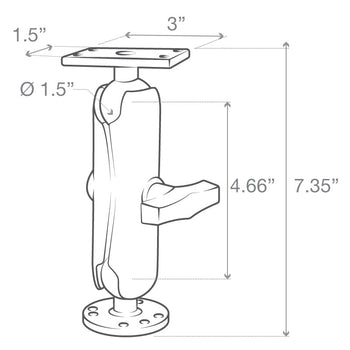

product dimensions
Overall Height: 7.35"
socket to socket length
4.66"
hole pattern
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter
Rectangular Plate: 1" x 2.5"
plate size
Top Plate: 1.5" x 3"
Bottom Plate: 2.5" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.52 kg
