RAM® Tab-Tite™ Flat Surface Mount for iPad Gen 1-4 with Case + More
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features
- Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) with case and more; interchangeable end cups allow you to modify the holder when upgrading devices

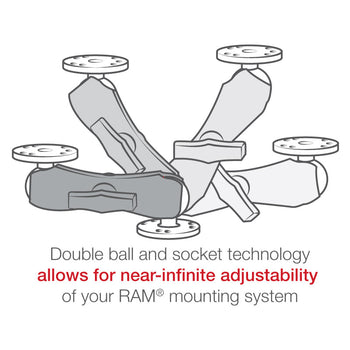

- Includes C size medium length double socket arm and 2.5" diameter round base; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

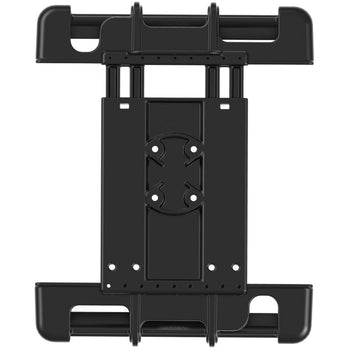

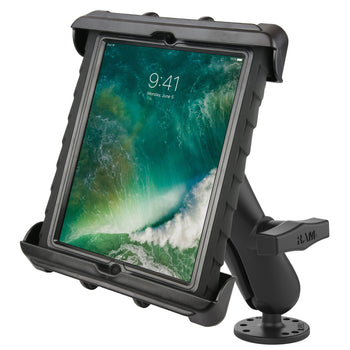

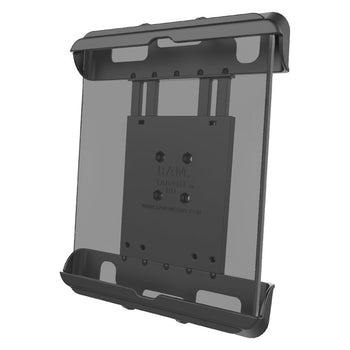

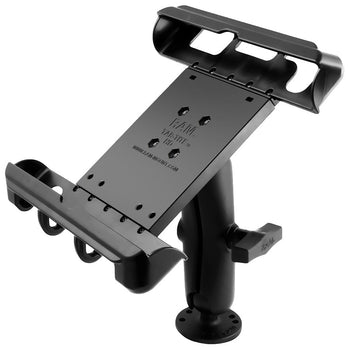

The RAM® Tab-Tite™ drill-down mount for large tablets consists of a 2.5" diameter C size round base with the universal AMPS hole pattern, double socket arm, round base adapter and RAM® Tab-Tite™ universal clamping cradle. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The included RAM® Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10" screen tablets with heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The RAM® Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Components
hardware included
Assembly Hardware
holder dimensions
Height Range: 9.5" - 11.75"
Width Range: 6.375" - 8.25"
Depth Range: .13" - 1.1"
socket to socket length
4.66"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size
2.5" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.75 kg
