RAM® Double Ball Mount with Garmin Fishfinder #6-32 Hardware
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.

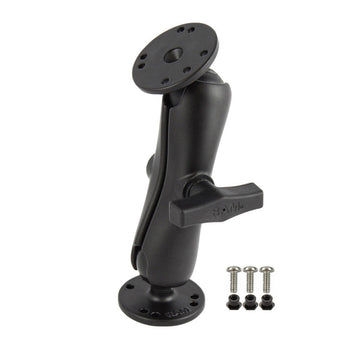

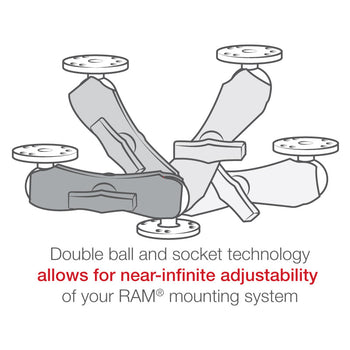

The RAM-101-G2U consists of a 6 inch double socket arm and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both ends of the double socket arm. With a twist of the arm knob, you can move the RAM-101-G2U mount to your optimum viewing position. Compatible with Garmin marine devices found under "compatibility".
Components
hardware included
(3) #6-32 x 3/8" Machine Screws
(3) #6-32 Nut Inserts

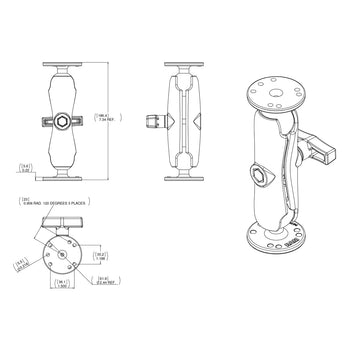

product dimensions
Overall Height: 7.35"
socket to socket length
4.66"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size
2.5" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.509 kg
