RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with Double U-Bolt Base
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
Swipe to see more images.
Features
- Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your Zebra TC8000 and TC8300

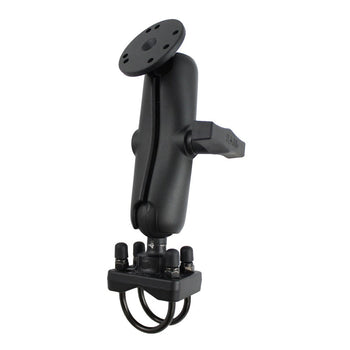

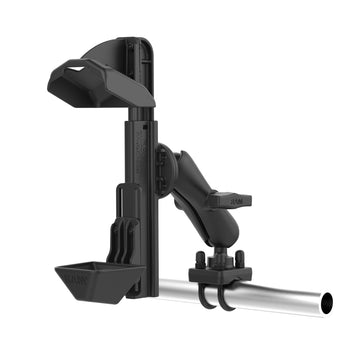

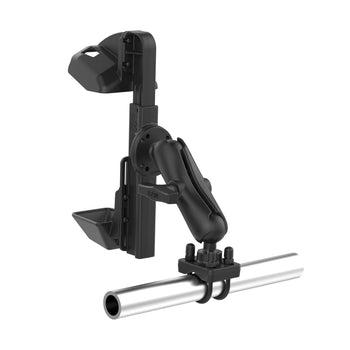

- Double U-bolt base is compatible with rails and bars ranging from 1.25" to 1.5" in diameter
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

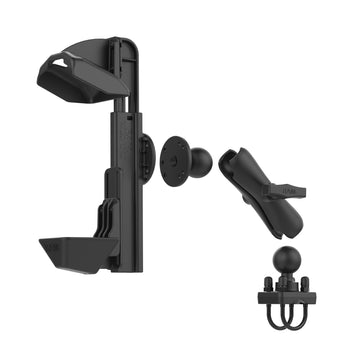

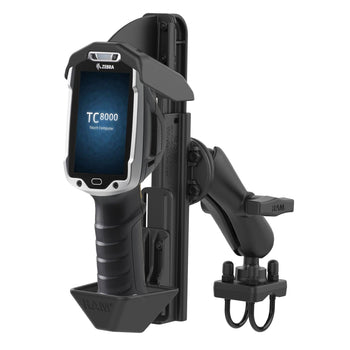

This RAM® Quick-Draw™ is designed specifically for the Zebra TC8000 and TC8300 scanners using a unique spring loaded mechanism that holds strong, yet provides easy removal for storage. At each end of the spring loaded cradle are small cups that are designed to fit cleanly around either edge of the scanner. Included is a standard length arm and round pipe base, which will connect to any RAM® Tele-Pole™ and other poles with a diameter from 1.25" to 1.5".
hardware included
Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
clamp range
1.25" - 1.5" diameter
socket to socket length
4.66"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.95 kg
