RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro & XP Pro Thermal
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 1 to 7 week timeframe. Please contact our sales team for more accurate delivery information.
You can also order the individual component parts below.
Swipe to see more images.
Features
- Bundle for Sonim XP Pro & XP Pro Thermal includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication

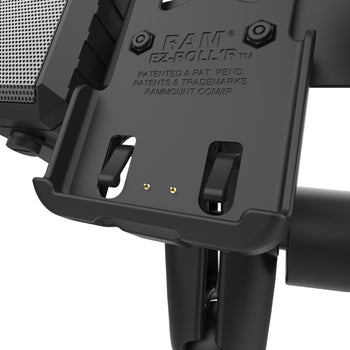

- Powered RAM® EZ-Roll'r™ form-fit dock for the Sonim XP Pro; provides charging through two integrated pogo pins and USB-A cable

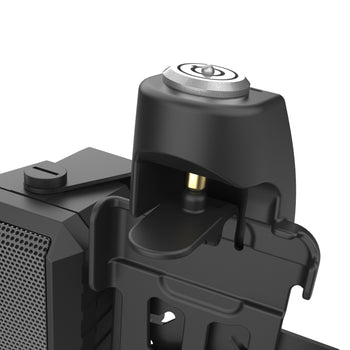

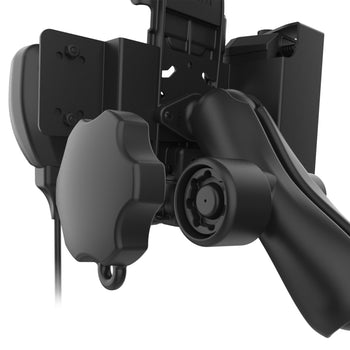

- Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
- RAM® components backed by lifetime warranty; dock and electronics backed by a 3-year warranty

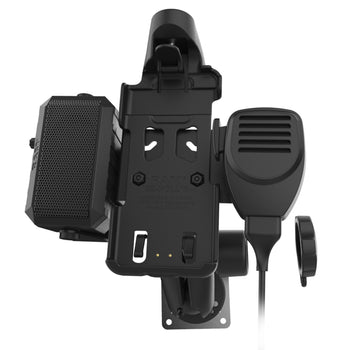

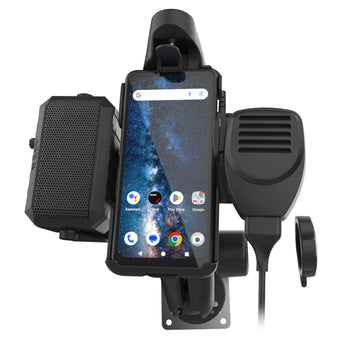

The RAM® Double Ball Mount for Sonim XP Pro & XP Pro Thermal with Speaker & Hardwire Bundle (RAM-138-S-SNM5PL-V7B1U) is a turn-key push-to-talk solution that will meet the demands of whatever your day brings. This kit is made of the RAM® EZ-Roll'r™ Powered Key Locking Dock for Sonim XP Pro & XP Pro Thermal, double ball mount with RAM® Pin-Lock™ Security Knob, speaker, microphone, and a mounting bracket. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector and includes a key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included USB-C to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger and backing plate hardware.
Components
hardware included
Assembly Hardware
(2) Keys for Holder
(1) Key for Locking Knob

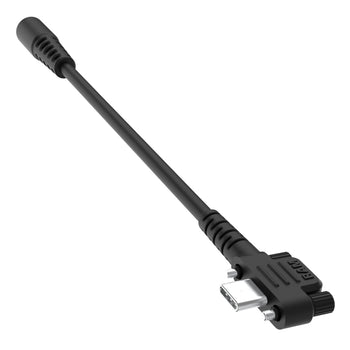

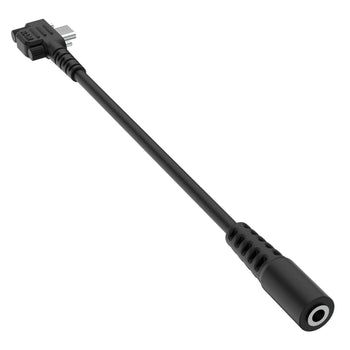

(1) USB-C to 3.5 Audio Adapter Cable
(1) Modular Hardwire Charger

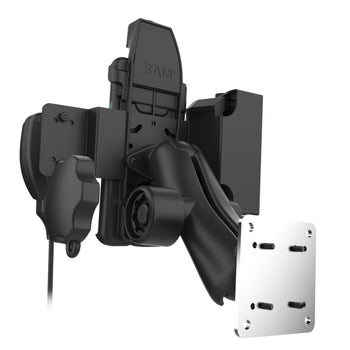

(1) Backing Plate & Hardware Assembly
speaker specifications
Independently adjustable volume knob
Max volume level: 100dB
8Ω / 10W rated speaker
socket to socket length
4.66"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size
2.5" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminum
High strength composite
Powder-Coated Steel
packaging type
Poly Bag
input voltage
10-30VDC
output voltage
5-9VDC*
output current
2.5A max
input connector
Charger: Female USB Type A
input cable length
1.2 Meters including 2 Pole Flat Marine Connector
output cable length
.2 Meters
operating temperature
-10°C to +70°C
storage temperature
-40°C to +70°C
regulatory
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications
E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty
3 year warranty
Weight
3.385 kg
