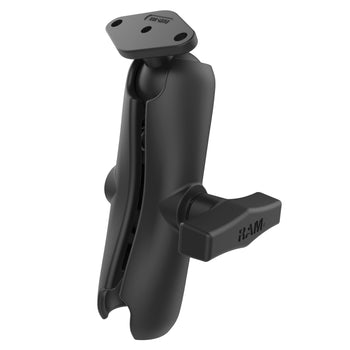

RAM® Double Socket Arm with Diamond Ball Plate
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Features
- Diamond plate connects to RAM® device holders containing the universal AMPS 2-hole pattern
- Includes C size medium length double socket arm 5.69" end to end with 4.66" socket-to-socket length; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
The RAM-103-238U consists of the 1.5" C size diameter ball and socket system with one open socket end; RAM-201U socket arm is medium length at 5.69" end to end with 4.66" socket-to-socket length. This mount is designed to be used with any of the C size RAM® Mount bases or cradles with a 1.5" diameter rubber ball. The RAM-238U RAM® Diamond Ball Base features industry standard AMPS 2-hole pattern and can be used as an adapter to attach a holder, or a mounting drill-down base.
Components
socket to socket length
4.66"
hole pattern
2-Hole AMPS 1.912"
plate size
2.43" x 1.31"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.4 kg
