RAM® X-Grip® Phone Mount with RAM® Mighty-Buddy™ Suction Cup
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.

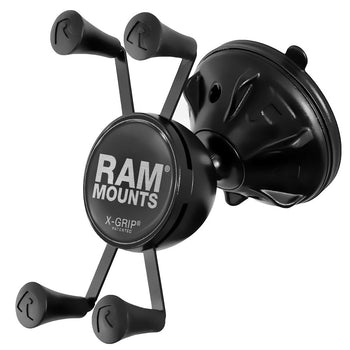

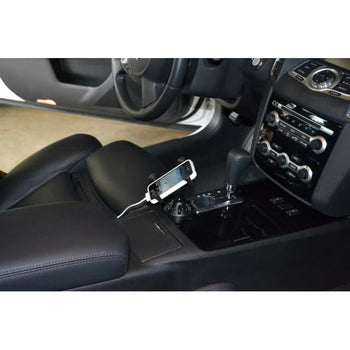

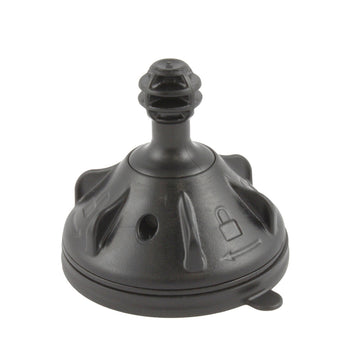

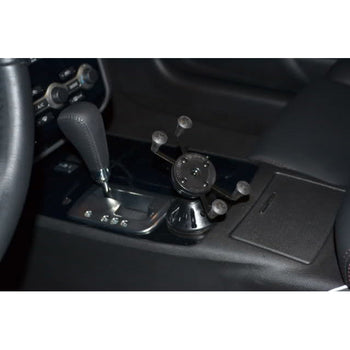

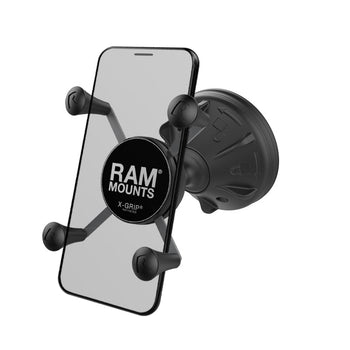

The RAP-SB-224-2-UN7U consists of a snap link, 2.75" diameter twist lock suction cup base and universal spring loaded X-Grip® cradle for cell phones. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including adhesive disks. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. Combine RAM single socket technology for adjustment and the holding power of a twist lock suction cup and you've got a mount ready for the road and whatever vehicle you want to drive today. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Components
hardware included
(1) Optional Tether
(1) Glue Tube for Rubber Caps
holder dimensions
Width Range: 1.875" - 3.25"
Depth Range: .875" max
suction size
2.75" Diameter
ball size
RAM Snap-Link (3/4")
weight capacity
.5 lb
materials
High strength composite
Stainless steel
packaging type
Poly Bag
Weight
0.16 kg
