RAM® Quick Release Socket Arm Extension for Wheelchair Armrests

Part#: RAP-B-419-201-201U-C
UPC:793442015144

£67.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team .

Swipe to see more images.

Features

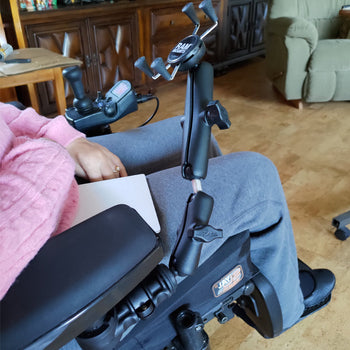

  • Connects to RAM® universal quick release wheelchair base with ease
  • Ball and socket technology sets your device at the perfect viewing angle with optional ball extension
  • Supports any RAM® phone or tablet holder on a wheelchair armrest
  • Backed by a lifetime warranty

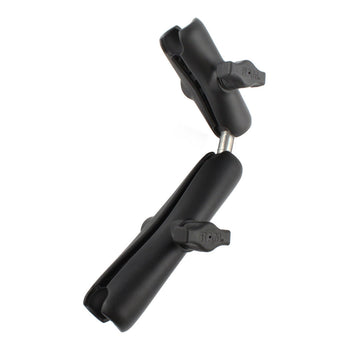

The RAM® Quick Release Socket Arm Extension consists of a 6" long B size socket arm, a 3.73" long B size socket arm, a double ball adapter connecting the two arms together, and a post ball adapter that will connect to the RAM® Universal Wheelchair Base receiver. The quick disconnect feature on the post allows you to quickly insert and remove the mount from the base as needed. These socket arms can adapt to any RAM® holder with ball for supporting your phone, tablet, cup holder, or any other device. To achieve the perfect mounting position of your device you could use only one of the socket arms provided, or connect the two arms together for the extra extension.

Components

hardware included

Assembly Hardware

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.46 kg
