RAM® Tough-Claw™ Medium Clamp Mount with Quick Release Adapter
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features

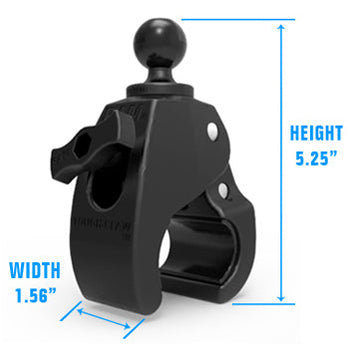

- Medium size version of the Tough-Claw™ designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1" to 1.6" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
- Includes B-size medium length socket arm and RAM® EZY-Mount™ Quick Release Adapter for OtterBox Hardline Series

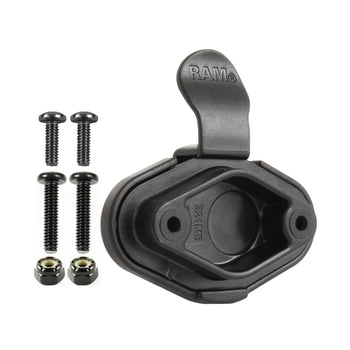

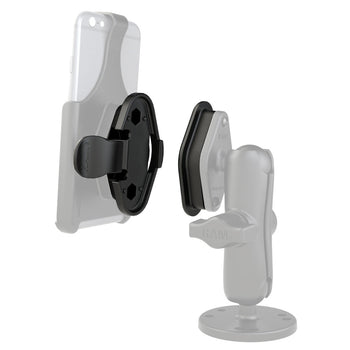

- Quick release adapter with release tab for easy docking and removal of device wrapped in an OtterBox Hardline Series case
- Backed by a lifetime warranty

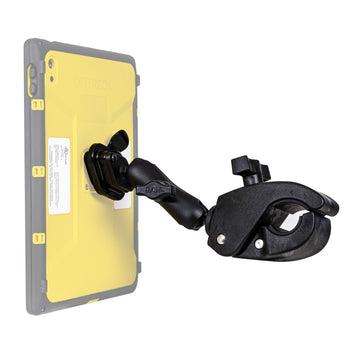

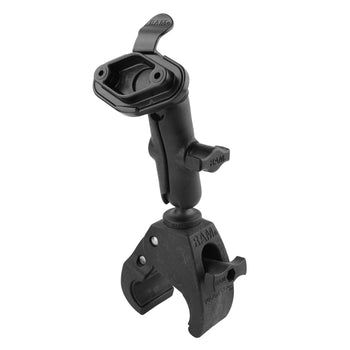

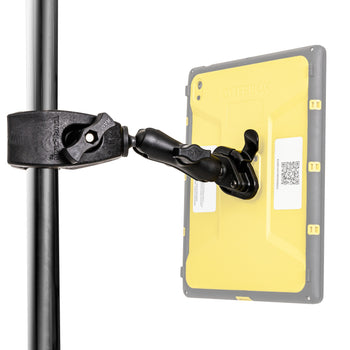

This Tough-Claw™ mount (RAP-B-404-326U) was designed in collabouration with OtterBox Hardline Series for industrial applications. This kit Includes B-size RAM® Tough-Claw™ clamp base, medium length socket arm, and a RAM® EZY-Mount™ Quick Release Adapter for OtterBox Hardline Series. With the quick release tab, simply push the tab to dismount the tablet without having to adjust the mount itself. The RAP-B-404U Tough-Claw™ is the medium version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1" to 1.6" in outer diameter, and includes rubber pads to provide stable gripping and protection of mounting surface.
Components
hardware included
Assembly Hardware
clamp range
1" - 1.6" diameter
socket to socket length
3"
hole pattern
2-Hole AMPS: 1.912"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
High strength composite
packaging type
Poly Bag
Weight
0.46 kg
