RAM® Quick-Grip™ XL Phone Mount with Stubby™ Cup Holder Base
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features

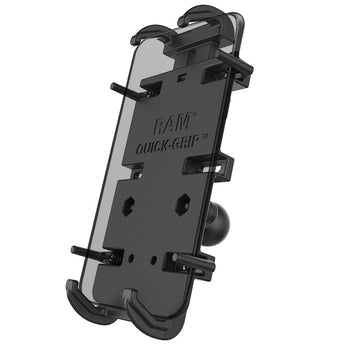

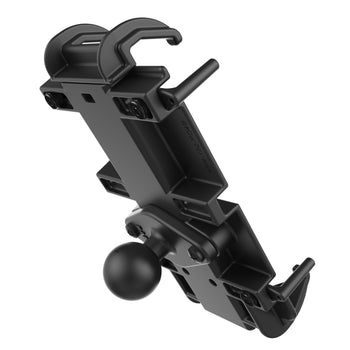

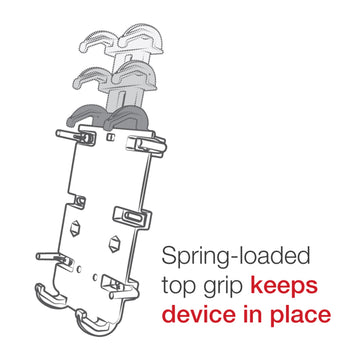

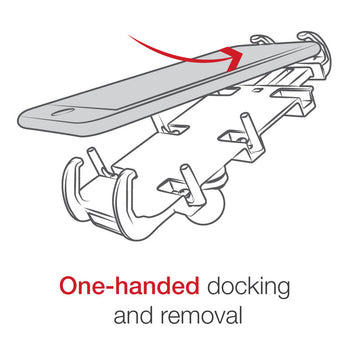

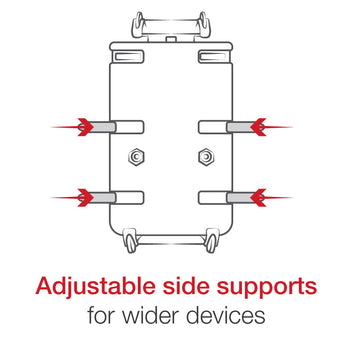

- Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand
- Portable and low-profile cup holder mounting base features flexible support fins that can be trimmed to size
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

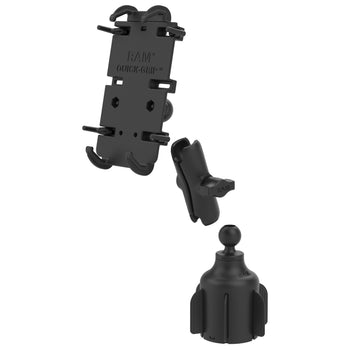

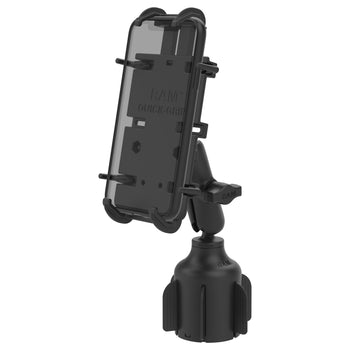

The RAM® Quick-Grip™ XL Phone Mount with Stubby™ Cup Holder Base (RAP-B-299-4-PD4U) is a low-profile, portable mounting solution that provides a secure fit for a variety of large phones and other devices. The Quick-Grip™ phone holder allows users to easily insert and remove their phone with one hand. The RAM® Stubby™ cup holder base features flexible support fins can be trimmed to size, making this cup holder base a versatile solution that can fit many different cup holder sizes. The RAM® ball and socket system allows for articulation at both ends of the double socket arm creating almost infinite adjustment and perfect viewing angles. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Components
hardware included
Assembly Hardware
holder dimensions
Height Range: 5.75" - 7.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"

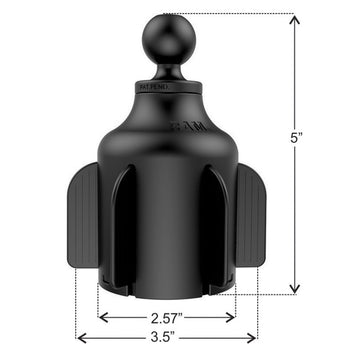

wedge dimensions
Fits cup holders between 2.57" - 3.5" inside diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
High strength composite
packaging type
Poly Bag
Weight
0.779 kg
