RAM® X-Grip® Large Phone Mount with Low Profile Suction Base

Part#: RAP-B-166-2-UN10U
UPC:793442955594Patented

£51.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team , alternatively order the individual component parts below.

Swipe to see more images.

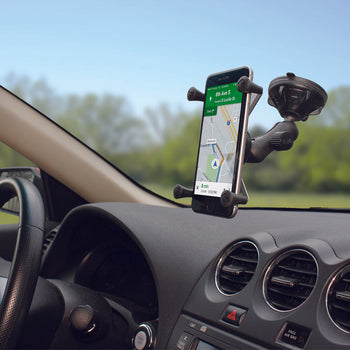

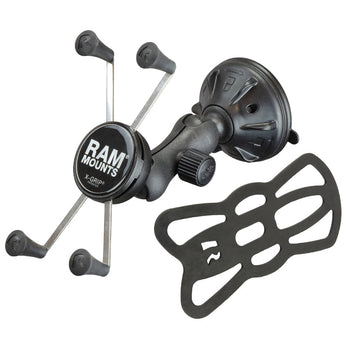

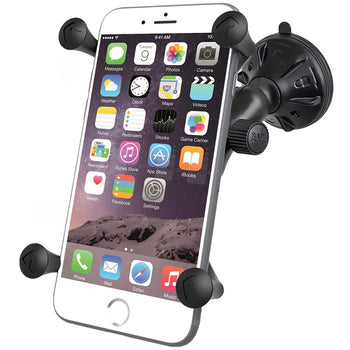

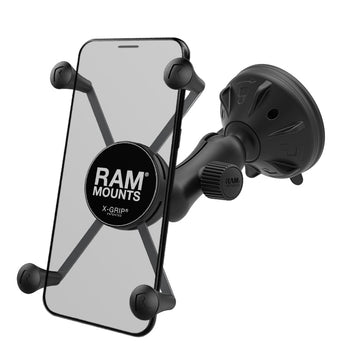

The RAP-B-166-2-UN10 consists of a 2.75" twist lock suction cup base, double socket system and universal spring loaded X-Grip® cradle for large phones. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

hardware included

(1) Optional Tether
(1) Glue Tube for Rubber Caps

holder dimensions

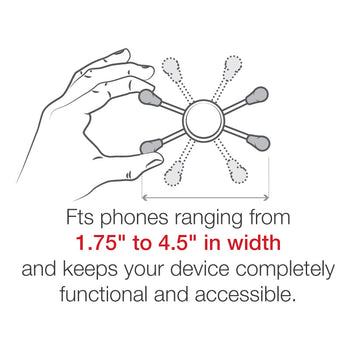

Width Range: 1.75" - 4.5"
Depth Range: .875" max

suction size

2.75" Diameter

socket to socket length

2.1"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

High strength composite
Stainless steel

packaging type

Poly Bag

Weight

0.2 kg
