RAM® Cable Manager with AMPS Hole Pattern for Electronic Mounts
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features

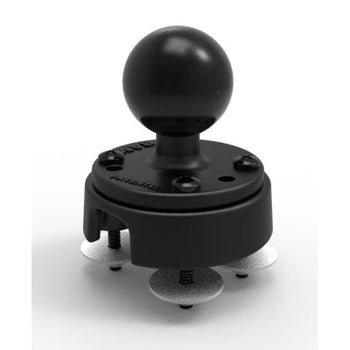

- Includes 4-hole AMPS pattern mounting holes for RAM® drill-down bases

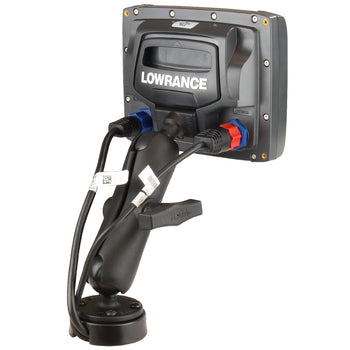

- 0.56" x 0.7" side cutout allows for routing cables from the power source to the mounted device
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

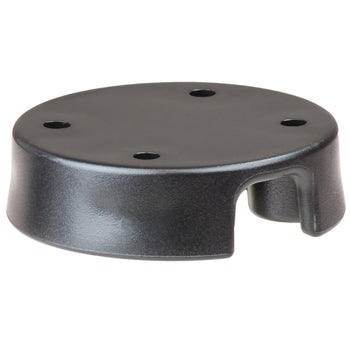

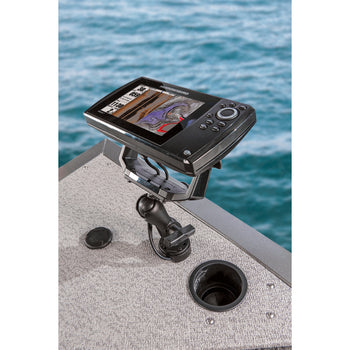

The RAM Cable Manager creates an integrated route for electrical wiring and cleanly covers installation holes. A great addition to any surface mounting application. The RAM Cable Manager is made of glass filled nylon which has the benefit of creating a barrier between the RAM Surface Mount and the attachment area; minimizing vibration while reducing fiberglass and gel-coat damage. This item will work with any of the 2 5/8" round plates with AMPs hole pattern.
hardware included
(4) #10-24 x 2" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10 Fender Washers
product dimensions
Cable Slot Height: .56"
Cable Slot Width: .7"
clamp range
Max mounting surface thickness: .68"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
Weight
0.114 kg
