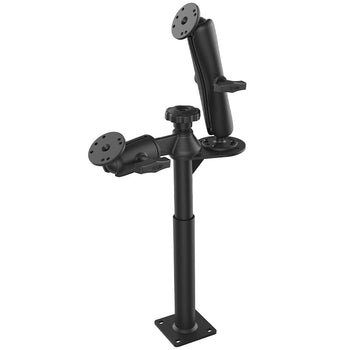

RAM® Tele-Pole™ with 8” & 9” Poles and Double Ball Mount

Part#: RAM-VP-SW2F-89
UPC:793442012150Patented

£206.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks.

For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..

Swipe to see more images.

Features

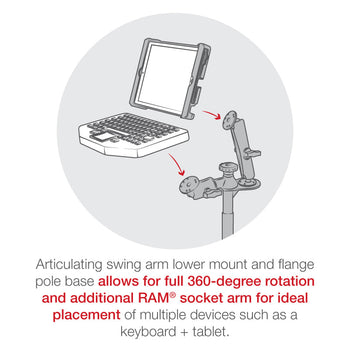

  • Articulating swing arm lower mount allows for full 360-degree rotation for ideal GDS® Keyboard™ placement
  • Compatible with a variety of RAM® tablet and other device holders
  • Made of powder-coated steel and marine-grade aluminium
  • Backed by a lifetime warranty

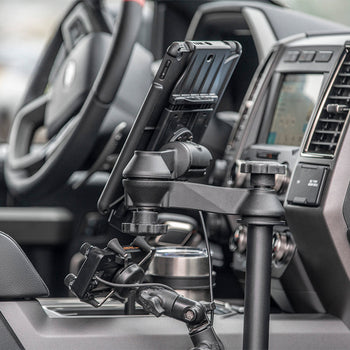

This in-vehicle workstation mount features a RAM® Tele-Pole™ 9” base, RAM® Tele-Pole™ 8” upper pole with flange, 6” swing arm, and a long C size double socket arm. Easily connect any RAM® tablet mount or holder to the flange double ball mount and connect our GDS® Keyboard™ to the swing arm system to complete the ultimate mobile workstation. With the ability to swing the keyboard out of the way when not in use as well as position the monitor at nearly any angle, ensure your mobile workstation is backed by RAM® Mounts for strength, durability, and versatility.

Components

RAM® 9" Lower Pole RAM-VP-TBF9U £27.99
RAM® 8" Upper Pole with Flange RAM-VP-TTMF8U £49.99

hardware included

Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps

hole pattern

Tele-Pole: 2.625" x 2.625"
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

materials

Powder coated steel
Marine-grade aluminium

packaging type

Box

Weight

3.43 kg
