RAM® Tele-Pole™ with 8" & 9" Poles and 75mm VESA Mount
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features
- Pair this RAM® Tele-Pole™ with a RAM® vehicle base that does not contain a welded female Tele-Pole™
- Easily adjust the height of the Tele-Poles™ with the turn of a knob, allowing you to twist and tilt the viewing and operating angle of your connected device
- Consists of D size mounting components, including a 75x75mm VESA Mount for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a lifetime warranty

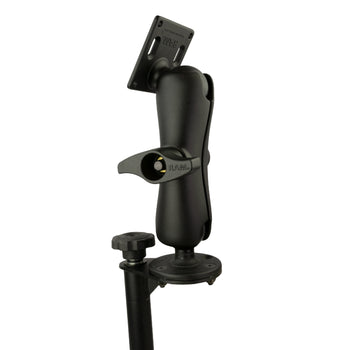

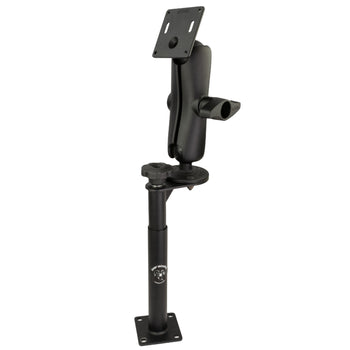

This RAM® Tele-Pole™ consists of a 9" lower pole, an 8" upper pole, double swing arm, and 75x75mm VESA Plate. The lower Tele-Pole™ will attach to all RAM® vehicle bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices, allowing you to twist and tilt the viewing and operating angle of your connected device.
Components
hardware included
Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps
socket to socket length
6.88"
hole pattern
Tele-Pole: 2.625" x 2.625"
VESA Plate: 75 x 75mm VESA
ball size
D Size (2.25")
weight capacity
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
materials
Powder coated steel
Marine-grade aluminium
packaging type
Poly Bag
Weight
3.89 kg
